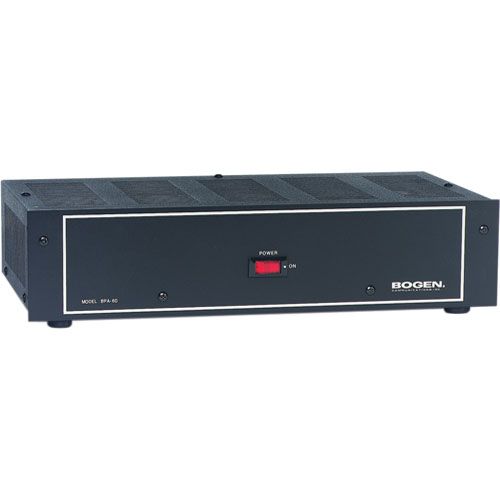

Bogen Communications 60W Power Amplifier - BPA60

Bogen Communications 60W Power Amplifier - BPA60

The BPA60 from Bogen is a 60W Power Amplifier. This solid-state amplifier is designed for professional and commercial sound systems with thermal protection for full rated output even at +130°F. This amp may be driven with 25/70V output and both 8 and 16 ohms.

• Selectable outputs modes of 8-ohm/25V, 16-ohms, 25VCT, 70V


• The BPA60 can operate at full output even with ambient temperatures over 130°F

Power Output 60W RMS

THD (Main Outputs) <2% from 50Hz-15kHz

Frequency Response 20Hz-20kHz

Sensitivity High-impedance, 300mV; low-impedance balanced, with optional transformer, 75mV

Hum & Noise 85dB below rated output

Output Load 8-ohm/25V, 16-ohms, 25VCT, 70V Input Impedance High-impedance, 50 kOhms unbalanced; low-impedance, 600 ohms, balanced or unbalanced; 1:1 bridging with accessory transformer

Filters Lo-Cut: -10dB at 100Hz (selectable)

Controls Input level control, circuit breaker reset, lo-cut filter switch, on/off

Connectors Terminal Strip (output)

RCA (input)

Terminal Strip Balanced Lo-Z (input)

Dimensions 15.25 x 3.5 x 8" (387.35 x 88.9 x 203.3mm)

Weight 19 lbs (8.61kg)
