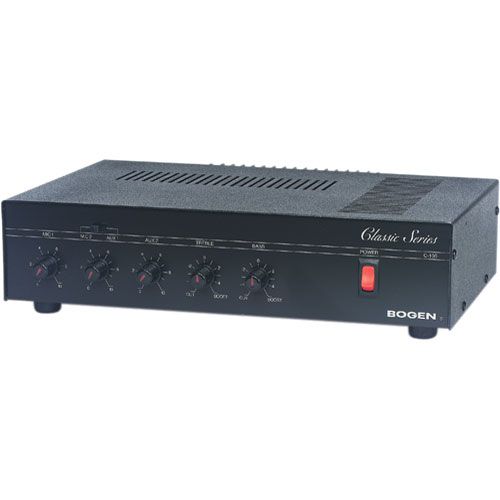

Bogen Communications (MOH) Classic Amplifier 10W - C10MOH

Bogen Communications (MOH) Classic Amplifier 10W - C10MOH

The C10 (MOH) 10W from Bogen is a reliable Classic Series Public Address Amplifier. This amp uses discreet complementary transistor circuitry for reliable power at each output stage. The rear panel has variable output taps at 4/8/16 ohms and 25/70V. This amp has a dedicated Lo-Z mic input and switchable mic and aux input. The C10 (MOH) provides 1W of music on hold with an additional input with its own level control.

• Voice activated muting of Aux input by Tel input


• Variable trigger threshold for voice activation


• Transformer isolated output taps at 4/8/16 ohms and 25/70V


• Music on hold with separate input and volume control

Power Output 10W

Distortion <1%@RPO

Frequency Response 70-16,000Hz

Hum & Noise
MIC - 55dB below rated output
AUX - 70dB below rated output
TEL - 70dB below rated output

Input Sensitivity
MIC - Lo-Z Balanced 600mV
AUX - 85mV (10k-ohms)
TEL - 75mV (600 ohms)

Output 4/8/16 ohms, 25/70V

Output Connections Screw terminal strip

Input Connections Two MIC Lo-Z terminals, AUX Hi-Z jack, TEL terminals

Power Requirements 120VAC/60Hz, 38W

Dimensions 11.38 x 2.87 x 7.38" (289 x 73 x 187.45mm)

Weight 5 lbs (2.27kg)
