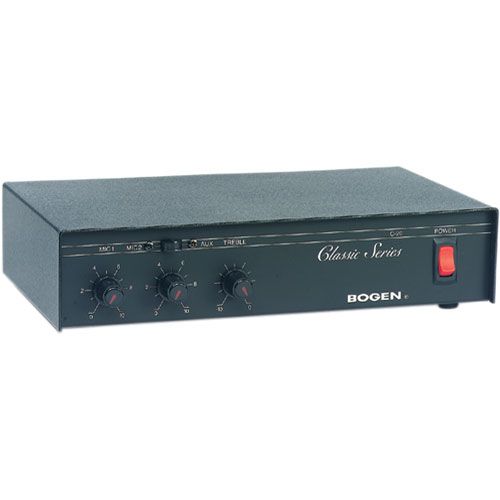

Bogen Communications Classic Amplifier 20W - C20

Bogen Communications Classic Amplifier 20W - C20

The C20 20W from Bogen is a reliable Classic Series Public Address Amplifier. This amp uses discreet complementary transistor circuitry for reliable power at each output stage. The rear panels has variable output taps at 4/8/16 ohms and 25/70V. The C20 has a dedicated Lo-Z mic input and switchable mic and aux input.

• Voice activated muting of Aux input by Tel input


• Variable trigger threshold for voice activation


• Transformer isolated output taps at 4/8/16 ohms and 25/70V

Power Output 20W

Distortion <1%@RPO

Frequency Response 70-16,000Hz
Hum & Noise
MIC - 55dB below rated output
AUX - 70dB below rated output
TEL - 70dB below rated output

Input Sensitivity
MIC - Lo-Z Balanced 600mV
AUX - 85mV (10 kOhms)
TEL - 75mV (600 ohms)

Output 4/8/16 ohms, 25/70V

Output Connections Screw terminal strip

Input Connections Two MIC Lo-Z terminals, AUX Hi-Z jack, TEL terminals

Power Requirements 120VAC/60Hz, 50W

Dimensions 11.38 x 2.87 x 7.38" (289 x 73 x 187.45mm)

Weight 6 lbs (2.72kg)
