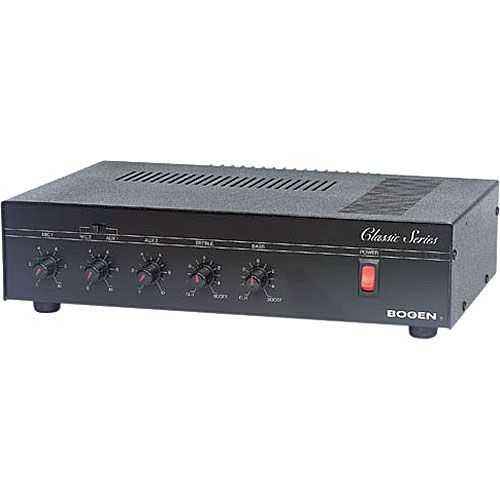

Bogen Communications Classic Series Public Address Amplifier 35W - C35

Bogen Communications Classic Series Public Address Amplifier 35W - C35

The C35 Classic Series Public Address Amplifier 35W from Bogen is a reliable mixer/amplifier. This amp uses discreet complementary transistor circuitry for reliable power at each output stage. The rear panel has variable output taps at 4/8/16 ohms and 25/70V. This amp has 4 inputs with independent volume controls plus treble and bass controls. Output jacks are provided for recording or secondary amplifiers.

• AUX muting by external contact closure for push-to-talk mic's


• Telephone input available for telephone paging applications


• Transformer isolated output taps at 4/8/16 ohms and 25/70V


• Thermal protection and electronic shutdown

Power Output 35W

Distortion <1%

Frequency Response Transformer: 70-16,000Hz

4-ohms direct output: 20-20,000Hz

Hum & Noise
MIC - 55dB below rated output
AUX - 70dB below rated output
TEL - 70dB below rated output

Input Sensitivity
MIC - Lo-Z Balanced 600mV
AUX - 85mV (10k-ohms)
TEL - 75mV

Output 4/8/16 ohms, 25/70V

Output Connections
Screw terminal strip
RCA x 2 (4 ohms)

Input Connections Two MIC Lo-Z terminals, AUX Hi-Z jack x 2, TEL terminals

Power Requirements 120VAC/60Hz

Dimensions 14.5 x 3.75 x 11" (368.3 x 95.25 x 279.4mm)

Weight 16 lbs (7.25kg)
