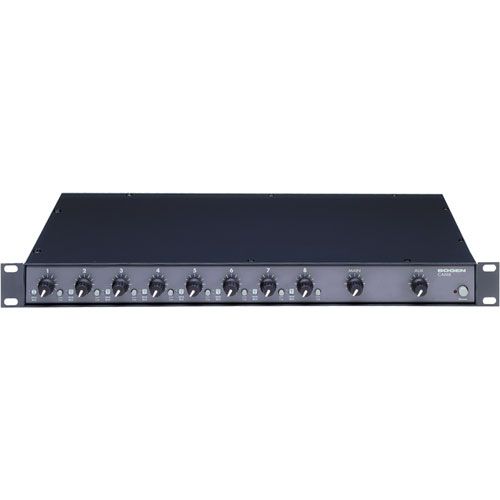

Bogen Communications Eight-Channel, Two-Bus Mixer and Preamplifier - CAM8

Bogen Communications Eight-Channel, Two-Bus Mixer and Preamplifier - CAM8

The Bogen CAM8 Mixer is an eight channel microphone and line level source mixer with an assignable main and auxiliary output. All connections are made with terminal strip connections and all eight inputs may be switched to accept line or microphone signals. An additional auxiliary line input is also provided. A low-cut filter is featured on each input for controlling low-frequency noise and hum. The CAM8 compliments any commercial public address system.

• Eight line/mic switchable inputs on terminal strip connections.


• Assignable main and auxiliary output buses


• Switchable mic/line level output


• Low-cut filter on each input

Inputs
Line/Mic Terminal Strip Connections x8
AUX In Terminal Strip Connection x1

Outputs
Main Out Terminal Strip Connection x1
AUX Out Terminal Strip Connection x1

Frequency Response 20Hz to 20kHz

THD & Noise Less than 0.5%

Signal-to-Noise Ratio -75dBm

Dimensions (WxHxD) 19 x 1 x 6" (48.26 x 2.54 x 15.24cm)

Weight 7 lbs
