Bogen Communications Drop-in Ceiling Mounted Speaker (Off White) - CSD1X2NB

Bogen Communications Drop-in Ceiling Mounted Speaker (Off White) - CSD1X2NB

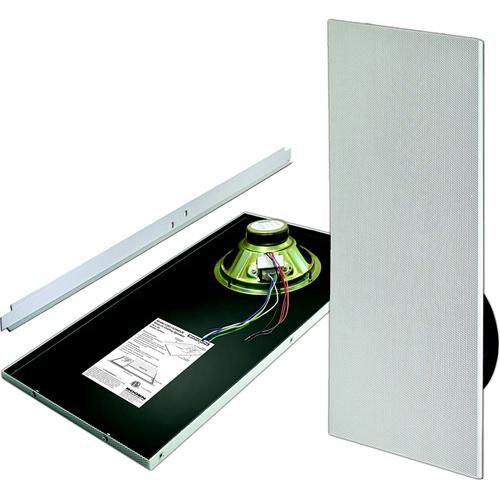

The Bogen CSD1X2 Drop-In Ceiling Speaker is an easy-to-install 1 x 2' ceiling tile speaker for use with 25/70V commercial PA audio systems. This easily installable speaker mounts into a 1' x 2' (30.50 x 61cm) cut-out in the existing ceiling tile. A tile support rail is included for a precise fit in any drop ceiling. The 8" cone speaker has a 10oz magnet with a dual 25/70V transformer.

• This model features an exposed driver (no back can) for easy accessibility


• Multi-tap rotary switch with taps for 1/4 - 4W


• 25/70V transformer


• Perforated grille on entire 2 x 1' tile

Active or Passive Passive

Frequency Response 110Hz - 20kHz

Power Capacity 4W

Maximum Sound Pressure Level (SPL) 94dB

Nominal Sensitivity Not specified by the manufacturer

Impedance 25/70V

Crossover None

Shielded No

Low Frequency Driver 8"

High Frequency Driver None

Enclosure Material Not specified by the manufacturer

Input Connections Wire nuts in electrical box

Environmental Plenum-Rated meets requirements of UL standard 2043 for smoke and heat release

Dimensions 12.9 x 4.75 x 23.75" (327 x 120.65 x 603.25mm)

Weight 10 lbs (4.54kg)

Specialties For use with 2 x 2' or 2 x 4' ceiling tiles
