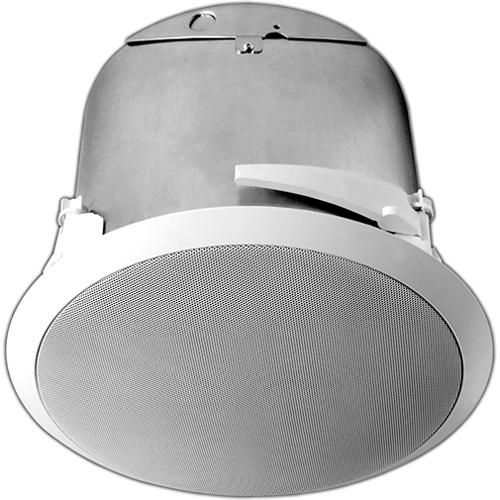

Bogen Communications 70V / 8 Ohm Ceiling Mounted Subwoofer - CSUB

Bogen Communications 70V / 8 Ohm Ceiling Mounted Subwoofer - CSUB

The Bogen HFCSUB Ceiling Subwoofer is capable of 70V commercial audio, or 8 ohm standard operation and features a steel back can and 8" woofer with a 40 - 124Hz frequency response. This sturdy speaker is easy to install in hard-surfaced ceilings, suspended ceilings, and new constructions. Under the grill is a rotary tap selector for a variety of power sources.

• 8" subwoofer driver


• Installs in sheetrock or drop-ceiling


• Capable of 70V commercial or standard 8 ohm operation


• Flat bass response down to 40Hz


• Computer-matched venting system for full bass output


• 11" deep enclosure


• Intergral swing-out mounting clamps eliminate need for tile bridge


• High power handling capability for foreground sound


• Selectable power taps via front-mounted control


• Power taps: 64,32, 16, 8, 4,and 2 watts @ 70V


• 8-ohm selector position for low impedance systems


• Compound rubber surround


• Easy wiring with plug-in connector providing loop-through terminals

Active or Passive Passive

Frequency Response 40 - 125Hz

Power Capacity 150W @ 8 ohms; 64W @ 70V

Maximum Sound Pressure Level (SPL) 91dB

Impedance Low (8 ohms) / High (70V)

Shielded No

Low Frequency Driver 8" Polypropylene Cone

Enclosure Material Baffle: Fire-rated (94VO) ABS

Back Can: Plated steel

Input Connections 4 Terminal plug-in connector

Dimensions (LxDiameter) 11 x 15.50" (279 x 393.7mm)

Weight 19 lbs (8.61kg)
