Description

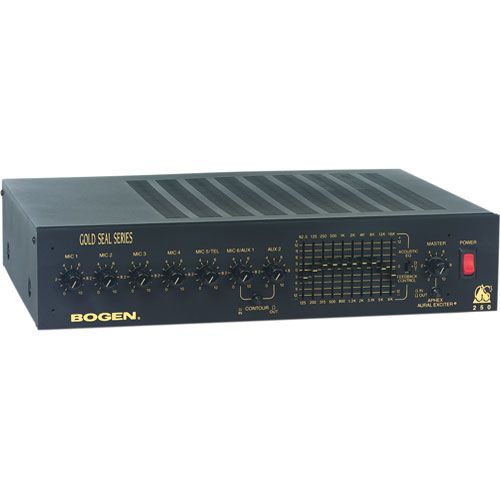

Bogen Communications Gold Seal Series Public Address Amplifier 250W - GS250
The GS250 250W Gold Series Amplifier from Bogen is ideal for public address systems. This reliable, versatile amp features 4 dedicated XLR microphone inputs plus one dedicated aux input and two switchable inputs for either mic/aux or mic/telephone. Improved intelligibility is aided by the integrated Aphex Aural Exciter and the 10-band graphic equalizer, which regulates Acoustic EQ and feedback control. The telephone input has voice activated muting with gradual fade back from the aux input after muting.
The GS250 250W Gold Series Amplifier from Bogen is ideal for public address systems. This reliable, versatile amp features 4 dedicated XLR microphone inputs plus one dedicated aux input and two switchable inputs for either mic/aux or mic/telephone. Improved intelligibility is aided by the integrated Aphex Aural Exciter and the 10-band graphic equalizer, which regulates Acoustic EQ and feedback control. The telephone input has voice activated muting with gradual fade back from the aux input after muting.
- 7 individuals level controls for the 4 dedicated XLR mic channels and 1 aux channel and 2 switchable channels
- 10-band graphic for acoustic EQ and feedback control
- Outputs for tape recording
- Aphex Aural Exciter helps improve intelligibility
Specifications
Power Output 250W
Distortion <0.5%
Frequency Response
Transformer: 65-20,000Hz
Direct output: 20-20,000Hz
Signal to Noise Ratio
Fundamental: -94 dB or better; Aux 1 & 2: -70dB; Tel: -70dB or better @ 600 ohms
Mic 1 - 6: -60dB or better @ 200 ohms
Output Impedance Balanced or unbalanced 8ohms, 25V, 25VCT, 70V, 4 ohm direct
Muting 4 Steps: -60, -21, -10, 0dB
Output Connections
Output to Power Amp: 5V @ Rated Output via RCA jack
WMT1A Output - 25V @ Rated Output via RCA jack
Tape Output: 687mV
Terminal strip
Input Connections
XLR x 4
Terminal strip
Mono RCA x 2
Specialties
10-band graphic EQ
Aphex Aural Exciter: Type A9
Dimensions 16.5 x 3.5 x 12" (419.1 x 88.9 x 304.8mm)
Weight 33 lbs (15kg)
Distortion <0.5%
Frequency Response
Transformer: 65-20,000Hz
Direct output: 20-20,000Hz
Signal to Noise Ratio
Fundamental: -94 dB or better; Aux 1 & 2: -70dB; Tel: -70dB or better @ 600 ohms
Mic 1 - 6: -60dB or better @ 200 ohms
Output Impedance Balanced or unbalanced 8ohms, 25V, 25VCT, 70V, 4 ohm direct
Muting 4 Steps: -60, -21, -10, 0dB
Output Connections
Output to Power Amp: 5V @ Rated Output via RCA jack
WMT1A Output - 25V @ Rated Output via RCA jack
Tape Output: 687mV
Terminal strip
Input Connections
XLR x 4
Terminal strip
Mono RCA x 2
Specialties
10-band graphic EQ
Aphex Aural Exciter: Type A9
Dimensions 16.5 x 3.5 x 12" (419.1 x 88.9 x 304.8mm)
Weight 33 lbs (15kg)
