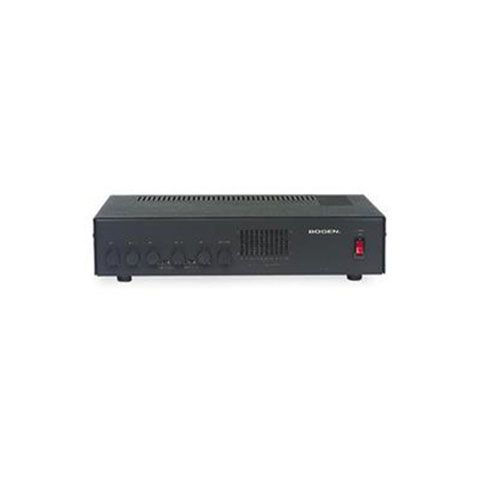

Bogen Communications Gold Seal Series Public Address Amplifier 60W - GS60

Bogen Communications Gold Seal Series Public Address Amplifier 60W - GS60

The GS60 60W Gold Series Amplifier from Bogen is ideal for public address systems. This reliable, versatile amp features 4 dedicated XLR microphone inputs plus one dedicated aux input and two switchable inputs for either mic/aux or mic/telephone. Improved intelligibility is aided by the integrated Aphex Aural Exciter and the 10-band graphic equalizer which regulates Acoustic EQ and feedback control. The telephone input has voice activated muting with gradual fade back from the aux input after muting.

• 7 individuals level controls for the 4 dedicated XLR mic channels and 1 aux channel and 2 switchable channels


• 10-band graphic for acoustic EQ and feedback control


• Outputs for tape recording


• Aphex Aural Exciter helps improve intelligibility

Power Output 60W

Distortion <0.5%

Frequency Response
Transformer: 65-20,000Hz
Direct output: 20-20,000Hz

Signal to Noise Ratio
Fundamental: -94 dB or better; Aux 1 & 2: -70 dB; Tel: -70 dB or better @ 600 ohms
Mic 1 - 6: -60 dB or better @ 200 ohms

Output Impedance Balanced or unbalanced 8-ohms, 25V, 25VCT, 70V, 4-ohm direct

Muting 0 to -30dB (aux 1 & 2)

Output Connections
Output to Power Amp - 5V @ Rated Output via RCA jack
WMT1A Output - 25V @ Rated Output via RCA jack
Terminal strip

Input Connections
XLR x 4
Terminal strip
Mono RCA x 2

Specialties
10-band graphic EQ
Aphex Aural Exciter: Type A9

Dimensions 16.5 x 3.5 x 12" (419.1 x 88.9 x 304.8mm)

Weight 24 lbs (10.89kg)
