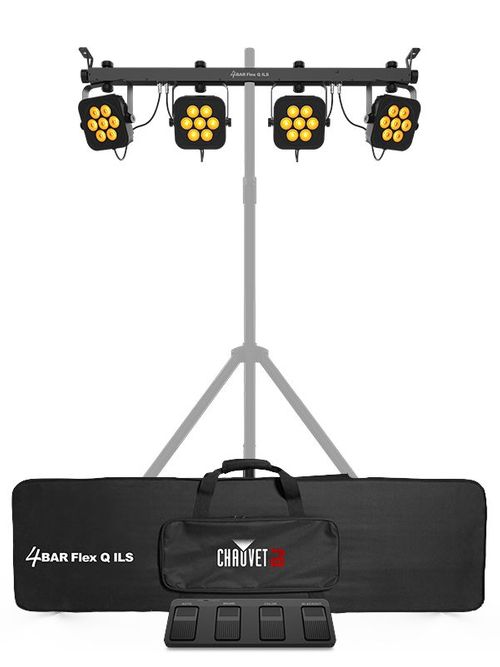

Chauvet DJ 4BAR Flex Q ILS - 4BARFLEXQILS

4Bar Flex Q ILS

Complete wash lighting convenience reaches new heights with 4BAR Flex Q ILS. This all-in-one system is fitted with four par fixtures on one bar. Because 4BAR Flex Q ILS is compatible with the Integrated Lighting System (ILS) that makes creating coordinated light shows across an unlimited number of different fixture types easy and fast, generating synced light shows without DMX is even easier. High-intensity, quad-color (RGBA) LEDs generate a broad spectrum of colors and achieve natural-looking color temperatures with its punchy amber LEDs. 4BAR Flex Q ILS easily sets up and tears down in minutes and includes a handy carry bag. Adding to the unit’s versatility are two L-brackets that let you maximize setup possibilities and configurations. Easily mount up to 4 additional fixtures to the top of the 4BAR Flex Q ILS and provide power to additional lights using the built-in Edison plugs. 4BAR Flex Q ILS mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole. D-Fi™ USB compatibility for wireless master/slave or DMX control is on-board and multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6.

• Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
• ILS compatibility for use in the ILS ecosystem
• Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• D-Fi™ USB compatibility for wireless master/slave or DMX control
• Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4Bar Flex Q
• Provide electricity to the additional lights by using the built-in Edison plugs
• Maximize setup possibilities and configurations with 2 included L-brackets
• Easily set up and tear down in minutes with the included carrying bag
• Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6 remote
• Safely mounts to truss using built-in bolts

• 4Bar Flex Q ILS
• Power cord
• Carrying bag
• Wireless footswitch
• IRC-6 remote
• Quick Reference Guide

• DMX Channels: 4, 6 or 19
• DMX Connectors: 3-pin XLR
• Max Unobstructed Distance: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 14°
• Field Angle: 23°
• Illuminance: 2,353 lux @ 2 m (per pod)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 80 W, 1.2 A @ 120 V, 60 Hz
• 78 W, 0.6 A @ 230 V, 50 Hz
• Approvals: CE, RoHS, UKCA
• Operating Frequency (D-Fi): 2.412 to 2.484 GHz
• Operating Frequency (foot switch): 433 MHz
• Max Unobstructed Distance (foot switch): 100 ft (30.5 m)
• Footswitch battery: 9 V
• Fits Tripod Sizes: 1.5 in (36.80 mm)
• Bracket Mounting Hole: M10 (1.5 mm pitch)
• Weight: 12.2 lb (5.5 kg)
• Weight (Controller): 1.2 lb (0.6 kg)
• Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
• Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
• Included controller: IRC-6
• Optional controller: D-Fi USB
