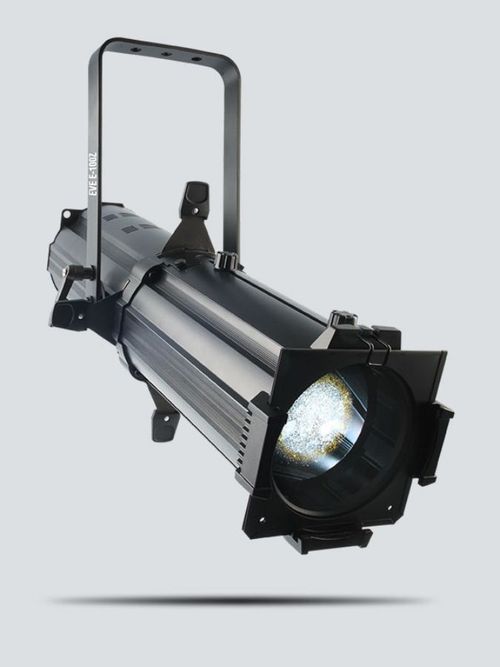

Chauvet DJ EVE E-100Z - EVEE100Z

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

EVE E-100Z

EVE E-100Z is a powerful spot fixture featuring sharp pattern projection with a 100 W warm white LED light source. It's designed for mobile and installation applications. This versatile fixture works with metal or glass gobos to create incredible gobo or pattern details. The manual zoom and framing shutters make it simple to control beams.

Key Features

LED Ellipsoidal shines a hard-edged, warm white spot in any direction
Easily highlight areas by altering the projected beam with framing shutters
Flexibility to project from any distance using the manual zoom
Flicker-free operation suitable for on-camera use
Includes holders for glass and steel gobos and a gel frame
Save time running extension cords by power linking multiple units
Eliminate the need for DMX control with standalone operation

Specifications

DMX Channels:	1 or 3
DMX Connectors:	3-pin XLR
Light Source:	1 LED (warm white) 100 W (2.3 A), 50,000 hours life expectancy
Strobe Rate:	0 to 30 Hz
Illuminance:	(14�): 15,100 lux @ 2 m (30�): 3,800 lux @ 2 m (14�): 3,238 lux @ 5 m (30�): 829 lux @ 5 m
Power Linking:	9 units @ 120 V; 16 units @ 230 V
Input Voltage:	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:	106 W, 0.9 A @ 120 V, 60 Hz 103 W, 0.5 A @ 230 V, 50 Hz
Gobo Size:	M (66 mm outside, 48 mm image, 2 mm max thickness)
Zoom Angle:	(manual): 14� to 30�
Weight:	12.6 lb (5.7 kg)
Size:	24 x 7.2 x 16.9 in (611 x 183 x 430 mm)
Approvals:	CE, METCRI: 80
Color Temperature:	3,500 K
Accessory Holder/Gel Frame Size:	6.3 x 6.3 in (160 x 160 mm)/6.24 x 6.24 in (158.5 x 158.5 mm)

What's Included

Power cord
Gel Frame
Framing Shutters
Gobo Holders for Glass and Steel Gobos
Warranty card
