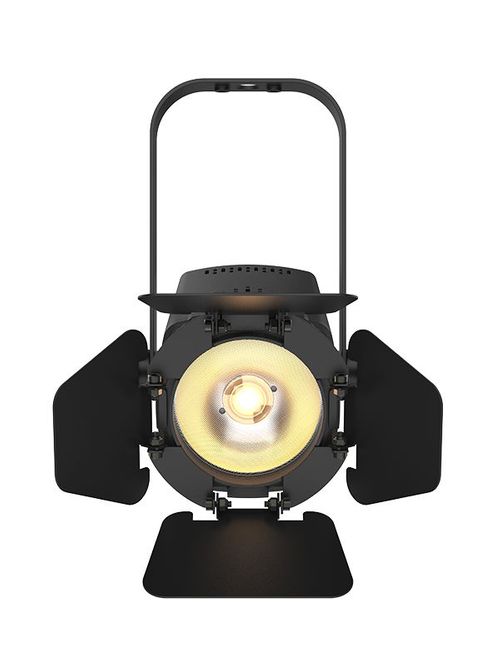

Chauvet DJ EVE Track Fresnel - EVETF20X

Eve TF-20X

Create warm accent lighting for your mobile and installation applications with EVE TF-20X, a soft edge accent luminaire in a classic Fresnel style form factor that gives the feeling of stage and theatrical lighting. EVE TF-20 X comes with powerful add-ons including barn doors that let you aim the light where you want it by blocking excess light from stage and unwanted areas. The included gel frame lets you add custom colors when needed and the included track adaptor fits most single and dual circuit tracks. EVE TF-20 X is also available in either black or white making it suitable for almost any occasion. Constant Current Reduction (CCR) dimming works with conventional dimmers and allows flicker-free video operation. MET certified, perfect for retrofitting and new installations.

• Soft edge accent luminaire designed for mobile and installation applications
• Constant Current Reduction (CCR) dimming works with conventional dimmers
• Track adaptor included fits most single and dual circuit tracks
• Suitable for every event with either black or white housing
• Classic Fresnel style gives the feeling of stage and theatrical lighting
• Included barn doors block excess light from stage and unwanted areas
• Includes Gel frame to add custom colors when needed
• Achieve flicker-free video operation with CCR LED dimming
• Standard power cord attached for mobile use right out of the box
• Includes track light adaptor for easy addition to existing track lighting systems
• MET certified, perfect for retrofitting and new installations

• EVE TF-20X
• Track adaptor
• Barn doors
• Gel frame
• Quick Reference Guide

• Light Source: 1 COB LED (warm white) 20 W, (0.5 A), 50,000 hours life expectancy
• Beam Angle: 24°
• Field Angle: 40°
• Illuminance: 1,506 lux @ 2 m
• Lumens: 1,658
• Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
• Power and Current:
  24 W, 0.2 A @ 120 V, 60 Hz
  24 W, 0.1 A @ 220 V, 50 Hz
• Weight: 2 lbs (0.9 kg)
• Size: 7.9 x 4.8 x 3.4 in (201.5 x 123 x 87.8 mm)
• Approvals: CE, MET, UKCA, RoHS
• Color Temperature: 2700 K
• CRI: 91
• Input Voltage: 220 VAC, 50 Hz
• Compatible Track: Type H
