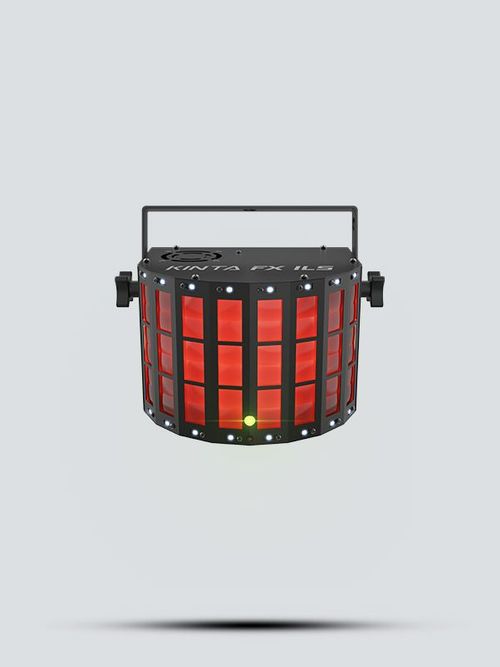

Chauvet DJ Kinta FX ILS - KINTAFXILS

Kinta FX ILS

Countless razor-sharp multicolor beams. Eye-catching strobe effects and chases. Hundreds of red and green laser beams. These are just a few of the effects that are sure to dazzle event guests from the Kinta FX ILS, a compact multi-effect light with a Kinta, laser, and SMD strobe. What makes this exciting effect light even more potent is its ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Kinta FX ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control. Easily control the unit from DMX, Master/Slave, IRC-6, or the digital display.

• Compact multi-effect with a Kinta, laser, and SMD strobe
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Projects countless razor-sharp multicolor beams
• SMD strobes produce eye-catching strobe effects and chases
• Red and green laser casts hundreds of beams
• Easily control the unit from DMX, Master/Slave, IRC-6, or the digital display
• Save time running cables and extension cords by power linking multiple units

• Power cord
• Warranty card
• User Manual

• DMX Channels: 2 or 9
• DMX Connectors: 3-pin XLR
• Light Source:
  (Kinta): 4 LEDs ( 1 Red, 1 Green, 1 Blue, 1 White) 7.5 W (2.4 A), 50,000 hours life expectancy
  (Strobe): 16 SMD LEDs (white) 5 W (1.6 A) 50,000 hours life expectancy
  (Laser): 650 nm/100 mW (Red) laser diode, 520 nm/30 mW (Green) laser diode
• Strobe Rate: 0 to 20 Hz
• Coverage Angle: 118°
• Power Linking: 17 units @ 120 V; 33 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 25 W, 0.5 A @ 120 V, 60 Hz
  24 W, 0.2 A @ 230 V, 50 Hz
• Weight: 3.8 lb (1.7 kg)
• Size: 7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
• Approvals: CE, FDA, RoHS, UKCA
• Optional Controllers: IRC-6
• Classified per EN/IEC 60825-1:2014
• Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
