Chief2' x 2' Plenum Rated Storage Box-CMS492

Focused Technology is a Proud

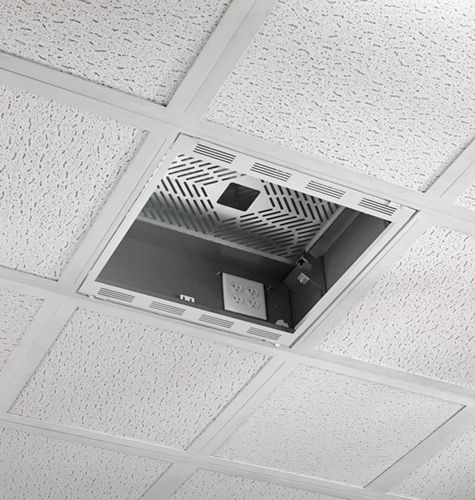

The CMS492 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.

• Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
• Inside the plenum box or facing the room
• Up to 2 single gang or 1 dual gang outlet
• 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
• Built in ventilation
• AV tray supports a variety of AV components
• Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
• 1 RU rack rail brackets sold separately, see CMS1RU
• Overall weight capacity 100 lbs (45 kg)
• 50 lbs (22 kg) for projector ceiling plate
• 25 lbs (11 kg) per shelf location
• Ships with speed connect installation hardware
• Lightweight construction, one man installation
• Plenum rated, UL approved in accordance to 2043

• Installation Manual
• Technical Drawing
