Chief WALL OUTLET POWER / SURGEX SINGLE GANG - EGX-SF2

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

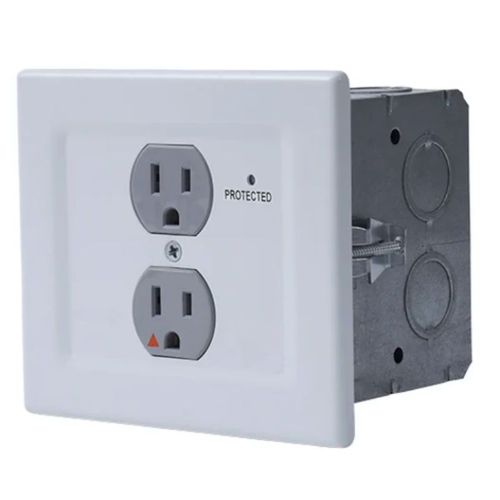

Chief Power Filtering & Surge Protection Wall Outlet

A high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection system. Protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Key Features

Non-volatile spike protection with LED power indicator
Non-sacrificial multi-stage technology
Non-current limiting design passes full power on a regular circuit; redundant protection circuits
Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
Line filter reduces common and differential mode noise by up to 40 dB
Rated for 125V~, 60Hz, 15 A
1875 watt maximum
Ferrite toroid based EMI Filter
Withstand rating of 240 VAC continuous without damage or loss of protection

Specifications

Depth	4 in (10.3 cm)
Height	4.5 in (11.4 cm)
Overall Dimensions	4.5" x 5.25" x 4.04� (114 x 133 x 103 mm)
Width	5.3 in (13.3 cm)
Accessory Type	Power
Adjustments	For additional dimensional specifications see technical drawing
Application	Wall
Notes	Housing Dimensions (HxWxD): 3.95 x 4.33 x 3.79� (100 x 110 x 96 mm)
Power Requirements	N-G; 800V L-G Maximum Continuous Operating Voltage (MCOV): 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating (SCCR): 5kA Ambient Temperature Max: 40 degrees C Power Consumption: >0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N
Solution Type	Dual-gang housing
Special Features	Surge and Filtering
TAA Compliant	No
Certifications	UL Listed
