Chief ROTATION ADAPTER ACCESSORY - FRA

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Chief Freestyle Flat Panel Rotation Adapter

The Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys™ or Fusion® mounts.

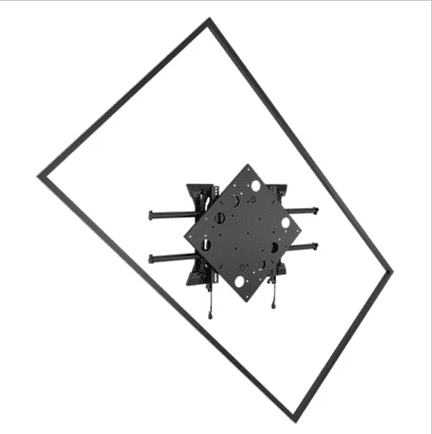

FRA shown in picture with Fusion® mount.

Note: Please see the selection guide in the Resources tab to ensure visual coverage of mount at all angles.

Mounting pattern can be 600 x 400 if using FHB5036 for M6 screws or FHB5037 for M8 screws.

Key Features

Positive lockouts at 15 degree increments
Provides 90 degrees of rotation for 360 degrees of range

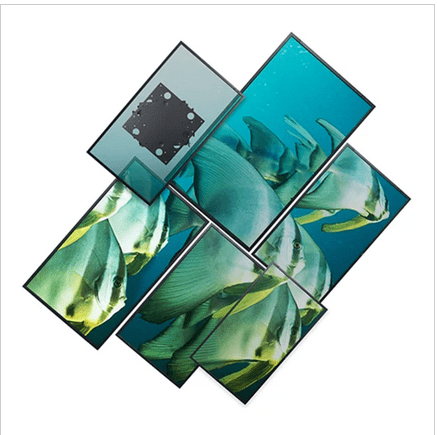

Overlapping displays (with Fusion® FCADA) adds another level of customization and creativity
Micro-adjustment (with ConnexSys™)
Weight capacity when used with ConnexSys™: 125 lbs (56.7 kg)
Weight capacity when used with STMS1U, MTMS1U: 55 lbs (24.95 kg)
Use with Fusion® wall, ceiling and freestanding mounts

Specifications

Depth	0.8 in (2.1 cm)
Height	17.3 in (43.8 cm)
Minimum Depth	0.8 in (2.1 cm)
Overall Dimensions	17.25 x 17.25 x 0.84" (438 x 438 x 21 mm)
Typical Screen Size	Greater than 40” (1016mm) using MTMS1U or STMS1U: 19” minimum display height at 45°. Greater than 55” using ConnexSys: 27” minimum display height at 45°
Weight Capacity	With MTMS1U, STMS1U 55 lbs (24.95 kg): With ConnexSys 125 lbs (56.7 kg)
Width	17.3 in (43.8 cm)
Application	Ceiling Floor-Cart Wall
Color	Black
Notes	Positive lockouts at 15 degree increments
Orientation	Landscape Portrait
Solution Type	Universal
TAA Compliant	No
VESA Mounting Pattern	200 x 200; 200 x 300; 200 x 400; 300 x 300; 400 x 400; (600 x 400 if using FHB5036 or FHB5037 bracket accessory)
