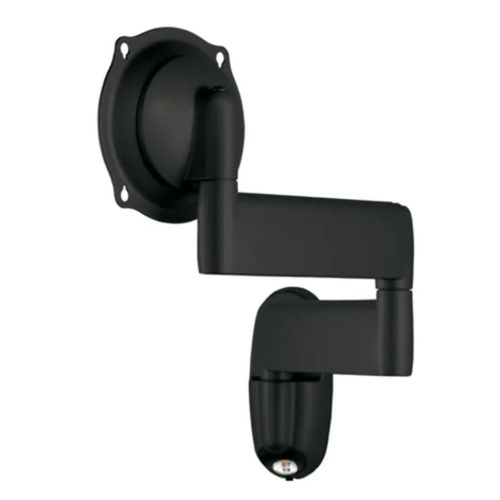

Chief J SERIES IN WALL ARM, DUAL - JWDIWVB

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

A low-profile mount designed to be hidden in the wall.

Must order MAC501 In-Wall Accessory!

Ships fully assembled
Ready for fast installation into a MAC501 In-Wall Accessory
Low profile, designed to ensure that the mount remains concealed behind the screen
Centris Technology provides smooth, fintertip tilt in all directions
Used with the MAC501B installed in between 16" on center studs.
No header or footer necessary
Smooth extension up to 21" (538 mm) to achieve ideal viewing angle
Back of TV sits close to the wall (0.1" for VESA 100 x 100mm screens and 0.65" for screens having up to 400 x 400mm patterns)
VESAŽ Compatibility: JWDIW210: up to 200 x 200mm, JWDIWU: up to 400 x 400mm

Minimum Depth	0.1 in (0.3 cm)
Shipping Weight	16.2 lbs (7.3 kg)
Typical Screen Size	26" - 45" (660mm - 1143mm)
Weight Capacity	75 lbs (34 kg)
Adjustability	Extension Swivel Tilt
Application	In-Wall
Color	Black
Notes	Require MAC501B. Depth and Extension do no include interface bracket (adds 0.5 - 1.5")
Orientation	Landscape Portrait
Post-Installation Leveling Roll	Yes
Solution Type	Universal
TAA Compliant	No
VESA Mounting Pattern	100x100 400x200
