Chief DUAL ARM WALL MNT, UNIV - JWDUB

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

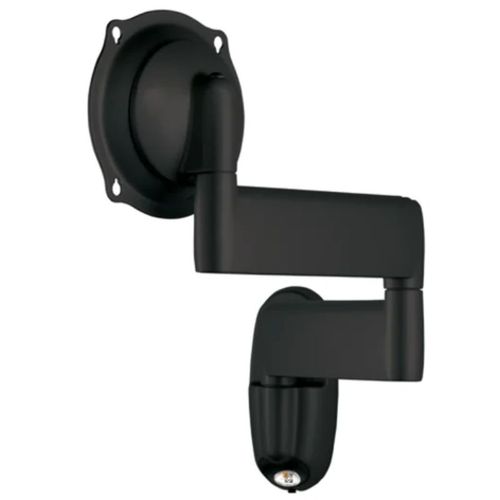

Chief Medium Flat Panel Swing Arm Wall Display Mount - 20 Inch Extension

Provides a broad range of motion for viewing medium flat panel displays and monitors from multiple angles. Standard solutions are for single wood stud installations. Additional versions available for 16" on center wood / metal studs and in-wall applications

Key Features

Centris Fingertip Tilt provides smooth tilt adjustment in all directions
Gravity-centered tilt self-adjusts to securely hold different display weights
Teardrop hole pattern makes mounting the screen quick and easy
Portrait and landscape screen installation
Smooth extension to achieve ideal viewing angle
Independently adjustable tension at pivot points for customized control
Folds in close to the wall for a low-profile appearance.
Quick, easy cable management
Sleek, attractive design hides all hardware
Ships assembled
Single stud wall mounting
Compatible with VESAŽ 100 x 100 mm up to 400 x 400mm mounting patterns
MSB interface bracket can be purchased separately for non-VESA compatible screens

Specifications

Depth	2.7 in (6.9 cm)
Height	14.7 in (37.3 cm)
Minimum Depth	2.7 in (6.9 cm)
Overall Dimensions	14.7" x 12.1" x 2.7" (373 x 308 x 68mm)
Shipping Weight	15.8 lbs (7.2 kg)
Tilt	+ 15° / - 15°
Wall Stud Compatibility In	Single Stud
Weight Capacity	75 lbs (34 kg)
Width	12.1 in (30.7 cm)
Adjustability	Extension Swivel Tilt
Application	Wall
Color	Black
Interface Included	Yes
Notes	Depth and Extension do not include interface bracket (may add 0" - 0.5" of depth)
Number of Displays	1
Orientation	Landscape
Post-Installation Leveling Roll	Yes
Solution Type	Universal
Special Features	None
TAA Compliant	No
VESA Mounting Pattern	100 x 100mm - 400 x 400mm
