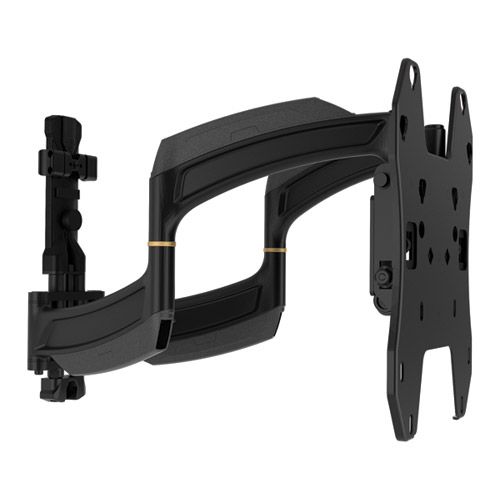

Chief Medium THINSTALL™ Dual Swing Arm Wall Mount - 18" Extension - TS318SU

Focused Technology is a Proud

---

Chief Medium THINSTALL™ Dual Swing Arm Wall Mount - 18" Extension - TS318SU

A lightweight, low-profile full-motion wall mount for TVs 26-52”.

Features:

• Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
• Extends up to 18” (457 mm) Full extension maximizes viewing potential.
• Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
• Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall fora seamless installation.
• Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Certifications: UL Listed

Color: Black

Manual Height Adjustment: 1" (25mm)

Maximum Extension: 18.1" (459.7mm)

Maximum Screen Thickness: 5" (127mm)

Minimum Depth: 1.3" (33.mm)

Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 600 x 400mm

Orientation: Landscape

Overall Dimensions (H x W x D): 13.5" x 22.6" x 1.3" (343 x 574 x 33mm)

Pivot (numerical value): ±90° (depending on screen width)

Post-Installation Leveling (Roll): Yes

Solution Type: Universal

Tilt: + ° , - 15°

Typical Screen Sizes: 26 - 52"

Wall Stud Compatibility (inches): Single Stud

Weight Capacity: 75 lbs (34 kg)
