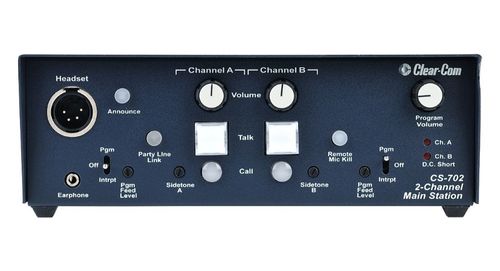

Clear-Com 2-Channel Compact Main Station - CS-702

2-Channel Compact Main Station

• Supports up to 55 beltpacks or 7 speaker stations on 2 channels
• Automatic short-circuit protection and reset with LED indicators
• Individual volume controls for each channel
• Mic-or line-level program with selectable Program Interrupt
• Remote Mic Kill
• Stage Announce with relay
• Channel A & B Link switch to operate as a one-channel system
• Built-in 1-amp power supply – CE approved, UL Listed

• Input Type: Dynamic
• Input Impedance: >= 1K
• Mic Limiter Threshold: 0dBu ± 3dB
• Mic Limiter Range: >= 15dB

• Maximum Level before Clipping: >= 20dBu
• Input Impedance: >= 5K

• Maximum Level before Clipping : >= -35dB
• Input Impedance: >= 1K

• Load Impedance: >= 8
• Output Impedance: <= 25
• Output Limiter Threshold: +5dBu ± 3dB
• Maximum Output Level before Distortion: >= 17dBu

• O Noise : < -74dBu
• Output Impedance : >10K

• Crosstalk: <-60dB
• Max level before Clipping: >= 12dBu
• Sidetone Null Capability: > 25dB

• Type: Balanced Output Impedance: >= 200
• Load Impedance: >= 600

• Headset Mic – Partyline :200 – 18KHz ± 3dB
• Headset Mic – Line Out: 200 – 18KHz ± 3dB
• Program Input – Partyline: 200 – 20KHz ± 3dB
• Program Input – Headset Out :200 – 18KHz ± 3dB
• Partyline – Headset Out :200 – 18KHz ± 3dB

• Headset Mic – Partyline: <= 0.5%
• Headset Mic – Line Out: <= 0.5%
• Program Input – Partyline: <= 0.2%
• Program Input – Headset Out: <= 0.2%
• Partyline – Headset Out: <= 0.2%

• Headset Mic – Partyline: < -70dBu
• Program Input – Partyline: < -85dBu
• Program Mic – Partyline: < -70dBu
• Program Input – Headset Out: < -60dBu
• Program Mic – Headset Out: < -40dBu
• Partyline – Headset Out: < -50dBu

• Headset Mic – Partyline: 41dB ± 2dB
• Headset Mic – Announce Out: 55dB ± 3dB
• Program Input – Partyline: >= -16dB
• Program Mic – Partyline: 41dB ± 2dB
• Program Input – Headset Out: >= 18dB
• Program Mic – Headset Out: >= 70dB
• Partyline – Headset Out: >= 34dB

• Input Voltage Range: 100 – 240 VAC
• Input Frequency Range: 50 – 60 Hz
• Input Power: <= 60 VAC
• Output Voltage: 30 VDC ± 0.5V
• Output Current per Channel (Continuous): 1.2 A

• (Peak): 2 A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
• Short Circuit Recovery Time (1st short):<= 0.5 sec
• Short Circuit Recovery Time >= 20 shorts in 20sec):<= 20 sec

• 32 – 122°F (0 – 50°C)

• 3 x 8.5 x 10 in (HxWxD)
• (76 x 216 x 254 mm)

• 5.0 lbs (2.3 kg)
