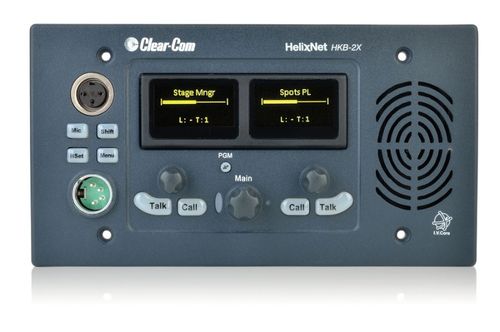

Clear-Com 4-Channel 2 Display with Shift Page Digital Speaker Station - HKB-2X

4-Channel 2 Display with Shift Page Digital Speaker Station

• Select any 4 channels from up to 24 channels of audio
• Displays 2 channels at a time with shift page
• Displays swivel up and down for best viewing
• Assign to a pre-defined role to make sure multiple devices are configured identically
• Individual partyline and program audio speaker levels with speaker mute
• Connects to main station over mic or Ethernet cable
• Core Configuration Manager (CCM) browser-based tool (with software v3.0 or higher)
• Powered by Powerline, Power-over-Ethernet or AC/DC adapter
• Fits 4-gang standard US ANSI/NEMA OS-1 electrical box, a 4-gang wall box or optional S-MOUNT enclosure

• Two intercom channels (Selectable) Program Audio (Assignable from Main Station

• Intercom Line: (2) 3-pin XLR–M–F
• Intercom Line Pin Function:
• Pin 1: Ground
• Pin 2: +30V DC and Audio
• Pin 3: -30V DC and Audio
• Headset: 4-pin XLR–M & 2.5mm TRS jack
• USB: Micro AB

• Headset Mic Impedance: 200? (Dynamic)
• Headset Mic Voltage: 1.7V (Electret selectable)
• Limiter: +23dB

• Mic Gain: 60dB (Dynamic), 45dB (Electret)
• Frequency Response: 300Hz – 10 kHz ±3dB, contoured for Intelligibility

• Load Impedance: >32?
• Output Level: +12dBu before clipping
• Sidetone: -12dBu (selectable)

• Max Gain: 0dB
• Frequency Response: 40Hz – 10kHz ±3dB
• Distortion: <0.1% THD @ 1kHz
• Noise: -65dBu
• Headphone Limiter: 0dBu (selectable)

• 4W DC Voltage Range: ±30-60 volts

• 32º – +113ºF (0 – +45ºC)
• 90% relative humidity

• 4.5 x 8.2 x 2.4 in (HxWxD)
• (114 x 209 x 61 mm)

• 18.8 oz (0.53 kg)
