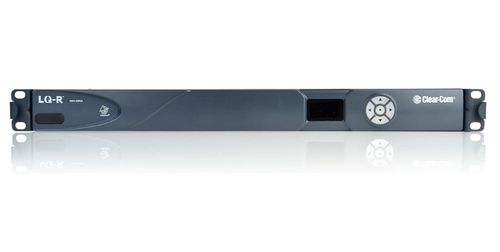

Clear-Com 8-Port 1RU Panel for Linking Both Partyline and 4-Wire with GPIO Audio - LQ-R2W4-4WG4

8-Port 1RU Panel for Linking Both Partyline and 4-Wire with GPIO Audio

• Intercom-over-IP: routing intercom and audio signals over IP networks
• Connect up to 6 LQ devices together over LAN, WAN, Internet
• Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per device
• Connects with matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles
• Supports up to 8 Agent-IC clients per LQ device (license required)
• Supports up to 8 SIP client connections per LQ device (license required)
• Connects to HelixNet via HLI-ET2 over LAN or WAN
• Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
• 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels
• Adjustable bandwidth on a per port basis
• Connectors: Network/LAN: EtherCON/RJ45 (female); Partyline Audio I/O: 3 Pin XLR (female); 4-wire with GPIO Audio I/O: 9-way D-type (male)
• Network-friendly OPUS Codec
• Browser-based Core Configuration Manager application
• Networked Control Events for multi-unicast one-to-many routing

• Resolution: 12, 24 bit
• Sample Rate: 24, 48 KHz
• Frequency Response: 100 – 12 KHz or 100 – 20 KHz
• CODEC: OPUS

• Input Gain: -3dB to +3dB
• Output Gain: -3dB to +3dB

• Line Level: (0 dB)
• Input Gain: -12dB to +12dB
• Output Gain: -12dB to +12dB
• Mic Level: (-50 dB)
• Input Gain: -12dB to +12dB
• Output Gain: -12dB to +12dB

• Bit Rates: 16, 32, 48, 64, 128Kbps
• Packet Size: 5, 10, 20, 40, 60ms
• Jitter Buffers: 0 – 1000ms

• Network/LAN: EtherCON/RJ45 (female)
• Partyline Audio I/O: 3 Pin XLR (female)
• 4-wire with GPIO Audio I/O: 9-way D-type (male)

• Type: Clear-Com & RTS TW
• Local DC Powered: 250mA per pair of partyline ports (500mA total)

• In-line supply with sleeve locking connector
• Input: 100-240V, 50-60Hz, 1.4A MAX
• Output: DC 12V, 5A, 60W MAX

• Operating Temperature: +32°F – +104°F (0°C – +40°C)
• Storage Temperature: -67°F – +158°F (-55°C – +70°C)
• Humidity: 90%, non-condensing

• 19 x 1.79 x 8.8 in (WxHxD)
• (483 x 46 x 224 mm)

• 4.29lbs (1.95kg)
