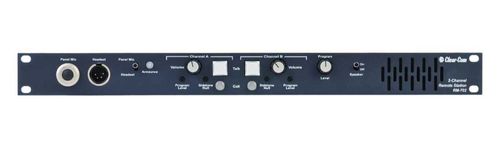

Clear-Com 2-Channel 1RU Remote Station with built-in Speaker - RM-702

2-Channel 1RU Remote Station with built-in Speaker

• Selectable one- or two-channel communication
• Momentary/Latching talk buttons
• Individual call buttons
• Visual and audible call signaling
• Balanced audio input with program interrupt (IFB)
• Hot mic and line-level outputs
• Stage announce output with relay
• Built-in speaker

• Input Type: Electret
• Input Impedance: >=2K
• Mic Limiter Threshold: 0dBu ±3dB
• Mic Limiter Range: >= 20dB

• Input Type: Dynamic
• Input Impedance: >= 1K
• Mic Limiter Threshold: 0dBu ± 3dB
• Mic Limiter Range: >= 15dB

• Maximum Level before Clipping: >= 20dBu
• Input Impedance: >= 5K

• Load Impedance: >= 8
• Output Impedance: <= 25
• Output Limiter Threshold: +5dBu ± 3dB
• Maximum Output Level before Distortion: >= 17dBu

• Load Impedance: >= 4
• Max Output Level before 1% Distortion: 20dBu ± 2dBu

• Output Noise: < -74dBu
• Output Impedance: >10K

• Crosstalk: < -60dB
• Max level before Clipping: >= 12dBu
• Sidetone Null Capability: > 25dB

• Type: Balanced
• Output Impedance: >= 200
• Load Impedance: >= 600

• Type: Unbalanced
• Output Impedance: 180
• Load Impedance: >= 600

• Panel Mic – Partyline: 600 – 10KHz ± 3dB
• Headset Mic – Partyline: 200 – 12KHz ± 3dB
• Headset Mic – Line Out: 200 – 12KHz ± 3dB
• Program Input – Partyline: 100 – 17KHz ± 3dB
• Program Input – Headset Out: 200 – 10KHz ± 3dB
• Program Input – Speaker Out: 300 – 10KHz ± 3dB
• Partyline – Headset Out: 200 – 10KHz ± 3dB
• Partyline – Speaker Out: 300 – 10KHz ± 3dB

• Panel Mic – Partyline: <= 0.5%
• Headset Mic – Partyline: <= 0.5%
• Headset Mic – Line Out: <= 0.5%
• Program Input – Partyline: <= 0.2%
• Program Input – Headset Out: <= 0.2%
• Program Input – Speaker Out: <= 0.5%
• Partyline – Headset Out: <= 0.2%
• Partyline – Speaker Out: <= 0.5%

• Panel Mic – Partyline: < -65dBu
• Headset Mic – Partyline: < -70dBu
• Headset Mic – Line Out: < -55dBu
• Program Input – Partyline: < -85dBu
• Program Input – Headset Out: < -60dBu
• Program Input – Speaker Out: < -60dBu
• Partyline – Headset Out: < -50dBu
• Partyline – Speaker Out: < -50dBu

• Panel Mic – Partyline: >= 37dB
• Headset Mic – Partyline: 41dB ± 2dB
• Headset Mic – Hot Mic Out: 55dB ± 3dB
• Headset Mic – Announce Out: 55dB ± 3dB
• Program Input – Partyline: >= -16dB
• Program Input – Headset Out: >= 18dB
• Program Input – Speaker Out: >= 24dB
• Partyline – Headset Out: >= 34dB
• Partyline – Speaker Out: >= 40dB

• Panel Mic – Partyline: <= 25dB

• Input Voltage Range: 20-30 VDC
• Input Current (Idle):<= 90mA
• Input Current (Max):<=110mA

• 32 – 122°F (0 – 50°C)

• 1.75 x 19 x 7.0 in (HxWxD)
• (44 x 483 x 178 mm)

• 5.2 lbs (2.4 kg)
