Countryman E6 Directional Earset

Please Note: Not all variations may be available to ship immediately. If you have an urgent need, please contact sales at 1-888-686-0551 or email sales@focusedtechnology.com with the model(s) and quantity you need.

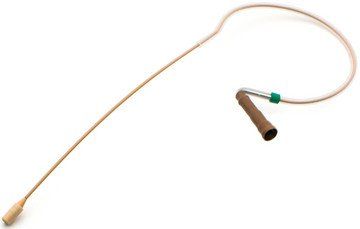

Countryman Associates E6 Directional Earset

Offering the same value, comfort, and sound quality of our popular E6 Omni, our E6 Directional Earset is designed for even more gain before feedback in noisy or loudspeaker-intensive spaces.

Our E6 Earset Mics are practically invisible to live or broadcast audiences. They're incredibly comfortable for the wearer. They capture sources clearly with excellent rejection of wind, ambient noise, and feedback. And their unique quick-swap cable extends the equipment life many times over. In addition, the quick-swap cable makes the same earset compatible with virtually any wireless mic system, simply by switching cables instead of buying an entirely new mic!

We've mounted our tiniest mic capsule on an even tinier boom that is rugged and incredibly lightweight. Silicon padding at the earpiece helps keep the boom comfortably in place, even with glasses or other head-worn accessories. We offer the widest range of boom and windscreen colors to match virtually any skin tone, and each mic can easily be custom-fitted to any wearer. Once adjusted to fit your head, the tough springy boom keeps its shape when stored.

What's more, the protective caps swap in seconds and allow you to select between cardioid and hypercardioid patterns for on-location fexibility.

It's no surprise that Countryman's E6 Directional Earset is a top choice for any spoken word application with excessive background noise or potential for feedback.

Applications:

• User-friendly for new and experienced users alike
• Excellent for singing and spoken word applications
• Extremely popular in houses of worship, theater and outdoor settings
• Directional version is ideal for situations with loud monitors, extreme feedback or environmental noise

Performance:

• High quality voice pickup - more consistent than any lavalier
• Excellent rejection of surrounding noise
• Sounds like a world-class performance mic
• Reduces feedback in meeting rooms or houses of worship an average of 12dB compared to an omni lavalier.

Style & Comfort:

• Smallest, lightest, most comfortable mic of its kind - only 1/10th ounce!
• Almost invisible against any skin tone
• Bendable boom custom fits every wearer
• Hands-free, wireless-enabled mic allows total freedom of movement

Durability:

• Rugged and reliable - virtually unbreakable steel boom
• Stiffer boom is easily adjusted yet holds its shape, making it perfect for single-wearer applications
• Exclusive quick-swap cables for field replacement or compatibility with various wireless systems
• Extremely resistant to sweat and water

Frequency Response : 30 Hz to 15 kHz
Operating Current : 500 μA
Operating Voltage : 1 to 2 Volts
Power Supply Voltage :
+3V with 2.7 kOhm Load
+5V with 6.8 kOhm Load
+9V with 15 kOhm Load
Weight : .07 oz (2 grams)

The E6 Directional Earset is available in three sensitivities:

Model E6DW5 for general speaking
Sensitivity: 6.0 mV/Pascal
Equivalent Acoustic Noise: 24 dBA SPL
Overload Sound Level: 125 dB SPL

Model E6DW6 for loud speaking and vocals
Sensitivity: 1.9 mV/Pascal
Equivalent Acoustic Noise: 29 dBA SPL
Overload Sound Level: 135 dB SPL

Model E6DW7 for powerful vocals
Sensitivity: 0.60 mV/Pascal
Equivalent Acoustic Noise: 39 dBA SPL
Overload Sound Level: 145 dB SP

Connector Type Reference Chart
Transmitter Brand		Transmitter Model		Connector Type		Code
(Earset only)		No Cable		(Earset only)		MO
(Hardwired)		Phantom Power		XLR3 Male		(no code)
(Pigtail leads)		Stripped and tinned		For 2 wire 10k ohm		NC
AKG		PT51, PT300, PT900		B-LOC (locking male)		AG
AKG		PT40, PT60, PT61, PT80, PT81, PT400, PT2000, PT4000		Switchcraft TA3F		AK
Audio Limited		TX2000, RMS-2000-mxl		Lemo 6 pin		AL
Audio Technica		T35, T75, T211, T601, T1000, T1200, T4000, T5000, T7000		Hirose 4 pin		AN
Audio Technica		T27, T31, T51, T200, T210, T300, T310, T1400, T2000, T3000		Hirose 4 pin		AT
Audio Technica		ATW-U101		Switchcraft TA5F		AW
Azden		WM-PRO, WLT-PRO, 32BT, WM22, 31LT		Non locking 3.5 mm		ZP
Beyer		Opus Series TS-100, TS-300, TS-500, TS-800		Screw on TA4F		MI
Electrovoice		300, N\DYM, NBPU, MSB, BPV, BPU, BPU2, CSB-1000, RE-1, RE-2		Switchcraft TA4F		ET
Electrovoice		2000, 2500 series		Switchcraft TA4F		EV
Lectrosonics		M170, 175		Switchcraft 851		L2
Lectrosonics		UM Series, LM Series		Switchcraft TA5F		L4
Lectrosonics		H Series		Switchcraft A3M		LE
Lectrosonics		M Series over 185		Switchcraft TA5F		LS
Lectrosonics		MM400		Water Proof 2.5mm		LW
Lectrosonics		UH Series		Switchcraft A3M		LX
Lectrosonics		SM Series, UMa Series, LMa Series		Switchcraft TA5F		SM
Lightspeed		BP-200		Push lock type 4 pin		LH
Mipro		ACT707TS(TE), ACT801TS(TE), MT103, MT303, MT801, MT808		Screw on TA4F		MI
Mipro		ACT707, MT801		Screw on mini 4 pin		MN
Mipro		ACT707, MT801		Screw on mini 4 pin		MN
Nady		UB10, UB16, WLT14, WLT15		3.5 mm locking plug		NL
Revolabs		HD		Switchcraft TA4F		RV
Sabine		SW16T, SW30T		Screw on mini 4 pin		SB
Sabine		SW16TX, SW30TX (1600, 3000), ST50T		Screw on TA4F		SS
Sabine		SW70		Switchcraft TA4F		ST
Samson		Airline AL-1		2.5mm stereo		AS
Samson		CT3, VT2L, UT1L, T32		Switchcraft TA3F		SV
Samson		UT5, TX3 (Black), UT6		Hirose 6 pin		SX
Sennheiser		BF1083		Lemo 1 pin		S1
Sennheiser		SK2000		Lemo 3 pin		S2
Sennheiser		SK-50, SK250, SK3063, SK5012		Lemo 3 pin		S3
Sennheiser		SK2012		Microdot		SE
Sennheiser		Evolution Series, EW100, EW300, EW500, G2, G3, SK 1093		3.5 mm locking plug		SR
Shure		Axient AXT-100		Switchcraft TA4F		AX
Shure		All with Lemo 3 pin		Lemo 3 pin		S3
Shure		FP1, PG1, PGX1, PGXD1, SLX1, ULX1, ULXD1, UR1, UR1M, BLX1		Switchcraft TA4F		SL
Sony		DWT-B01		Hirose 4 pin (twist lock)		DS
Sony		WRT-805, 806, UTX-B1, UWP806		3.5 mm locking plug		SN
Sony		WRT-28, 820, 860		Hirose 4 pin (twist lock)		SO
Sony		WRT-822, WRT-420, WRT-8B		Hirose 4 pin (twist lock)		SY
Telex		WT 200, 400, 450		Lemo 4 pin		TL
Telex		All with TA4F connector		Switchcraft TA4F		TS
Toa		WM4300		Switchcraft TA4F		TA
Toa		WM370, WM4310		Toa special 3.5 mm		TO
Vega		T23, T25, T37, T93, PRO-2, BP2020, ST2020		Switchcraft TA4F		VS
Zaxcom		TRX900, TRX900AA		Lemo 3 pin		ZX
