Covid Cables HDBaseT Set, HDMI 4K, 18G, with Local Loop Out EHB-200

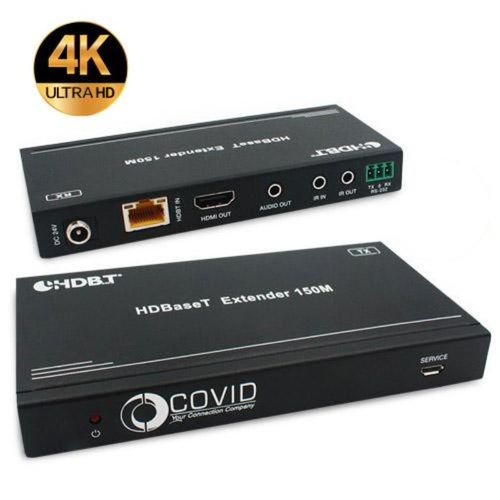

Covid EHB-200 HDBaseT Box Set

The 18Gbps HDBaseT Extender transmits ultra-high definition video and audio, RS-232 and bi-directional IR up to distances of 492 ft (150 meters) via a single CAT 6/6A cable. It supports resolutions up to 2160p at 60 Hz (4K - 18G) with support for HDCP 2.2. The additional HDMI output on the transmitter allows for use of a local monitor at the source side. The receiver provides de-embedded audio for L/R audio output. The set includes PoC power extension and two-way IR to control both source and display.

• HDMI 2.0, HDCP 2.2 / HDCP 1.4
• Resolutions Up To 2160p at 60Hz (4K - 18G)
• 18Gbps video bandwidth
• Extends up to 394ft (120m) 4K and 492ft (150m) 1080p
• Audio up to 7.1 channels of High Definition audio pass through (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
• Supports HDMI High Bit Rate (HBR) audio pass through
• Extract audio supports LPCM 2CH
• Additional HDMI output on transmitter allowing for local monitor on source side
• PoC (Power Over Cable) functionality is supported, either Tx or Rx is powered by a 24V at 1A power supply. PoC Power consumption is less than 10W
• Bi-directional IR, RS-232 and CEC pass-through

• Product Data Sheet
