Intelix VGA Cat5 Extender Transmitter and Receiver Pair - DIGI-VGA-F

Intelix VGA Cat5 Extender Transmitter and Receiver Pair - DIGI-VGA-F

The Intelix DIGI-VGA-F balun set transmits high-definition VGA video and high-fidelity analog audio extended distances over inexpensive structured pair cabling, such as Cat 5 or Cat 6. The DIGI-VGA-F balun set includes a DIGI-VGA-S-F send balun, a DIGI-VGA-R-F receive balun, two power supplies, and a USB power cable. The kit is powered on both the send and receive end with either 12 VDC power supplies or optional USB power on the send end. The send balun provides local audio/video outputs for added versatility, whereas the receive balun features dual amplified audio/video outputs for linking. In addition, the DIGI-VGA-R-F receive balun provides brightness, contrast, and overall picture quality adjustment for skew-free performance over standard Cat 5 cabling.

Example System 1: A PC is connected to two remote monitors and two remote powered speakers via an Intelix DIGI-VGA-F. VGA video and stereo audio is routed from the PC to the DIGI-VGA-F send balun. A local monitor output provides local audio and video. The signal is then routed over 850 feet of Cat 5 to the DIGI-VGA-F receive balun. A built-in amplification circuit splits the audio and video to the two destinations. The system is powered at both the send and receive ends.

Max Distance

1920 x 1200 resolution: 250 feet
1600 x 1200 resolution: 350 feet
1280 x 1024 resolution: 500 feet
1024 x 768 resolution: 700 feet
800 x 600 resolution: 850 feet
Video Amplifier Bandwidth


Receive Unit (250 feet): 120 MHz
Receive Unit (850 feet): 50 MHz
Send Unit: 300 MHz
Max Units for Linking 3
Max Distance Between Links Distance based on resolution
Power Consumption
Receive Unit: 12V/0.5A or 6W
Send Unit: 12V/0.2A or 2.4W
Audio Frequency Response
20 Hz to 20 kHz
Audio Impedance
600 ohm
Audio Nominal Level
0 - 1.0V
Common Mode Rejection
60 dB
Input Video Signal
1.2 Vp-p
Cable Cat 5, Cat 5e, Cat 6, and Cat 7 compatible
Send Device Connectors

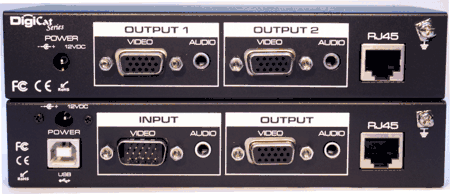

One male HD15 input, one female HD15 output, one 1/8" mini audio input, one 1/8" mini audio output, one shielded RJ45 output, one USB type-B power connector, one DIN mini power connector
Receive Device Connectors

Two female HD15 outputs, two 1/8" mini audio outputs, one shielded RJ45 input, one DIN mini power connector

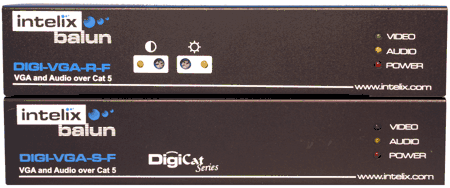

Brightness Front panel trim-pot on the DIGI-VGA-R-F receive unit
Contrast (skew adjustment) Front panel trim-pot on the DIGI-VGA-R-F receive unit
Status Front panel video, audio, and power LEDs on both the receive and send units
Enclosure RF shielded metal
Dimensions
Receive Unit: 6.25" x 1.25" x 3.25"
Send Unit : 6.25" x 1.25" x 3.25"
Shipping Weight 4.0 lbs.
Temperature
Operating: 32 to 131 degrees F
Storage: -4 to 185 degrees F
Humidity: up to 95%
Warranty 2 years
Part #
DIGI-VGA-F
Included Accessories Two power supplies
