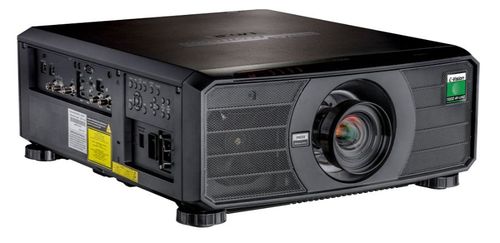

Digital Projection E-Vision 11000 4K-UHD Laser Projector - NO LENS (120-602)

Description

Digital Projection E-Vision 11000 4K-UHD Laser Projector - NO LENS

Key Features

Two projectors in one - 4K-UHD and WQXGA+
DisplayPort 1.2 with HDCP 2.2
2 x HDMI 2.0 with HDCP 2.2
2 x HDMI 1.4b inputs with HDCP 1.4 for Dual Pipe processing and Frame Sequential 3D Format.
Sequential Processing: 3D via single HDMI 1.4b input
Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs
Synchronisation of active glasses
3G-SDI with loop-through
DICOM simulation mode

Onboard 4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc, and Image Rotation
User definable custom warp
Digital zoom, pan and scan.
Independent four boundary blanking control for custom input window sizing
Scaling available for fixed aspect ratio screens.
Unscaled processing for pixel mapped display.

Two sources can be displayed simultaneously using 2D inputs with the original aspect ratios maintained

Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable
Allows projector to be placed up to 100m from source with low cost cabling
Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4

Four colour modes available: ColorMax / Manual Color Matching / Color Temperature / Gains and Lifts
Powerful seven point colour correction for accurate colour matching with presets
Easy colour temperature selection
Manual seven point colour adjustment
Traditional lifts and gains

Detailed Specifications
Resolution:	4K (4096x2160)
Display Device:	1 x 0.67" WQXGA+ TRP UHD DMD
Brightness:	9,500 ANSI / 10,500 ISO Lumens
Contrast Ratio:	6000:1
Video Signals:	NTSC, PAL, SECAM; Computer signals up to 4K-UHD (3840x2160)
Aspect Ratio:	16:9
Number of Colors:	Full Color
Lamp:	Laser Light Engine
Typical Lamp Life:	Up to 20,000 Hours
Lens:	NO LENS
Throw Ratio:	Depends on Lens; Lens not included
Image Size:	Depends on Lens; Lens not included
Throw Distance:	Depends on Lens; Lens not included
Keystone Correction:	Onboard 4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc, and Image Rotation
Projection Methods:	Front/Rear; Tabletop/Ceiling Mount
Inputs:	HDMI x 4 DisplayPort x 1 BNC x 1 RJ45 x 2 RS232 x 1 3D Sync x 3 12-Volt Trigger x 2 Wired Remote In x 1
Outputs:	BNC x 1
Speaker:	None
Audible Noise:	Smooth Picture On: Normal mode: typical 43 (max 45) dBA Eco mode: typical 39 (max 41) dBA Smooth Picture Off: Normal mode: typical 42 (max 44) dBA Eco mode: typical 38 (max 40) dBA
Weight:	63.34 lbs.
Dimensions:	23.55" x 19.68" x 8.60"
Accessories:	N/A
Remote Control:	Remote Control Included with Batteries
Mfg Warranty:	5 Year Manufacturer's Warranty
Product Data Sheet:	Product Data Sheet
