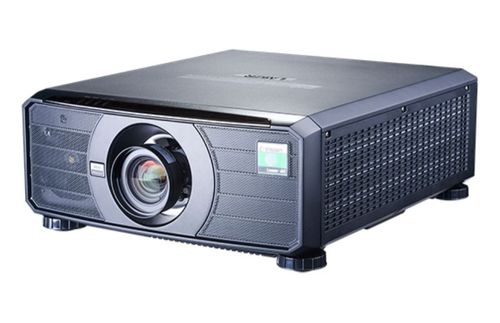

Digital Projection E-Vision Laser 4K HB Laser Projector - NO LENS (120-608)
Description
Digital Projection E-Vision Laser 4K HB Laser Projector - NO LENS
Key Features
Key Features
- Video & Graphics Processing
- Two projectors in one - 4K-UHD and WQXGA+.
- DisplayPort 1.2.
- 2 x HDMI 2.0.
- 2 x HDMI 1.4b for Dual Pipe processing and Frame Sequential 3D format.
- Sequential Processing: 3D via single HDMI 1.4b input.
- Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs.
- Synchronisation of active glasses.
- 3G-SDI with loop-through.
- DICOM simulation mode.
- Geometry Correction
- Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation.
- Non-linear warp.
- Digital zoom, pan and scan.
- Blanking control for custom input window sizing.
- Scaling available for fixed aspect ratio screens.
- Unscaled processing for pixel mapped display.
- Edge Blending
- Blending control available for all sides with width control.
- Correction for non-active pixels at the edge of the display.
- Picture in Picture
- Two sources can be displayed simultaneously using 2D inputs: either picture in picture (PIP), or side by side (PBP), with original aspect ratios maintained.
- HDBaseT® Interface
- Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
- Allows projector to be placed up to 100m from source with low cost cabling.
- Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4
- Colour Processing
- Four colour modes available.
- Powerful seven point colour correction for accurate colour matching with presets.
- Easy colour temperature selection.
- Manual seven point colour adjustment.
- Traditional lifts and gains.
- Projector Controller Software
- Intuitive user interface for network control.
- Simultaneous control of user-defined groups of projectors.
- At-a-glance monitoring of projector status.
- Projector Automation
- Real-time clock provides daily on/off automation.
- E-mail alerts for system status.
Specifications
| Detailed Specifications | |
| Resolution: | 4K (4096x2160) |
| Display Device: | 1 x 0.67" WQXGA+ TRP UHD DMD™ |
| Brightness: | 7,000 ANSI / 7,500 ISO Lumens |
| Contrast Ratio: | 10000:1 |
| Video Signals: | NTSC, PAL, SECAM; Computer signals up to 4K-UHD (3840x2160) |
| Aspect Ratio: | 16:9 |
| Number of Colors: | Full Color |
| Lamp: | Laser Light Engine |
| Typical Lamp Life: | Up to 20,000 Hours |
| Lens: | NO LENS |
| Throw Ratio: | Depends on Lens; Lens not included |
| Image Size: | Depends on Lens; Lens not included |
| Throw Distance: | Depends on Lens; Lens not included |
| Keystone Correction: | Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation. |
| Projection Methods: | Front/Rear; Tabletop/Ceiling Mount |
| Inputs: | HDMI x 4 DisplayPort x 1 BNC x 1 RJ45 x 2 RS232 x 1 3D Sync x 3 12-Volt Trigger x 2 Wired Remote In x 1 |
| Outputs: | BNC x 1 |
| Speaker: | None |
| Audible Noise: | Smooth Picture On: Normal mode: typical 40 (max 42) dBA Eco mode: typical 37 (max 39) dBA Smooth Picture Off: Normal mode: typical 38 (max 40) dBA Eco mode: typical 34 (max 36) dBA |
| Weight: | 62 lbs. |
| Dimensions: | 23.55" x 19.68" x 8.60" |
| Accessories: | N/A |
| Remote Control: | Remote Control Included with Batteries |
| Mfg Warranty: | 5 Year Manufacturer's Warranty |
| Product Data Sheet: |  Product Data Sheet |
