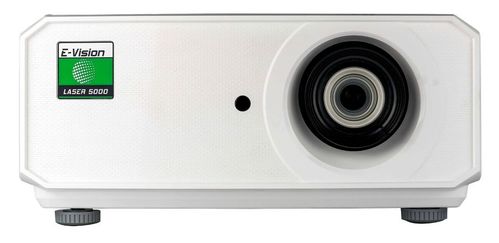

Digital Projection E-Vision Laser 5000 Laser Projector
Description
Digital Projection E-Vision Laser 5000 Laser Projector
Key Features
Key Features
- Video & Graphics Processing
- HDMI 1.4a for Side by Side, Frame Packing, Frame Sequential & Top Bottom 3D formats.
- Synchronisation of active 3D glasses.
- DICOM simulation mode.
- Mobile High-Definition Link (MHL™) connection allows mirrored content from smartphones, tablets and other portable consumer electronics devices.
- Geometry Correction
- Vertical & Horizontal Keystone correction (2D: Vertical ±30°, Horizontal±30°).
- Four Corner adjustment.
- Selectable 16:9, 4:3, Native, Letterbox and Full Screen aspect ratios.
- Digital Zoom +10~-10.
- HDBaseT® Interface
- Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
- Allows the projector to be placed up to 100m from the source with low cost cabling.
- HDBaseT® includes audio, Ethernet 100BaseT and RS232/IR control.
- Colour Processing
- 2 x speed, 3 Segment (GBY) Phosphor wheel.
- 2 x 120Hz speed, 4 Segment (RGBY) Colour wheel.
- 10-bit colour display.
- 55% of NTSC colour gamut.
Specifications
| Detailed Specifications | |
| Resolution: | WUXGA (1920 x 1200) |
| Display Device: | 1 x 0.67" DarkChip™ DMD™ |
| Brightness: | 5,000 ANSI / 5,500 ISO Lumens |
| Contrast Ratio: | 20000:1 |
| Video Signals: | NTSC, PAL, SECAM; Computer signals up to WUXGA (1920x1200) |
| Aspect Ratio: | 16:10 |
| Number of Colors: | Full Color |
| Lamp: | Laser Light Engine |
| Typical Lamp Life: | Up to 20,000 Hours |
| Lens: | Manual zoom and focus with horizontal and vertical shift. |
| Throw Ratio: | 1.15 - 1.90 :1 |
| Image Size: | N/A |
| Throw Distance: | 1.5m - 5.0m |
| Keystone Correction: | Vertical ±30°, Horizontal±30° |
| Projection Methods: | Front/Rear; Tabletop/Ceiling Mount |
| Inputs: | HDMI x 2 (1x MHL compatible) VGA x 1 Composite Video (RCA Yellow) x 1 3.5mm Stereo Audio x 1 3.5mm Microphone Input x 1 RCA Audio (L/R) x 1 USB Type A x 1 USB Mini B x 1 RJ45 x 1 RS232 x 1 3D Sync x 1 |
| Outputs: | VGA x 1 3.5mm Mini Jack Audio x 1 |
| Speaker: | 5W Stereo |
| Audible Noise: | Normal Mode Typ: 36 dBA / Max: 38 dBA Eco Mode Support Typ: 34 dBA / Max: 36 dBA Eco Plus Mode Typ: 34 dBA / Max: 36 dBA Dimmy Mode Typ: 29 dBA / Max: 31 dBA Extreme Dimmy Mode Typ: 29 dBA / Max: 31 dBA |
| Weight: | 23.1 lbs. |
| Dimensions: | 17.7" x 13.8" x 5.9" |
| Accessories: | N/A |
| Remote Control: | Remote Control Included with Batteries |
| Mfg Warranty: | 5 Year Manufacturer's Warranty |
| Product Data Sheet: |  Product Data Sheet |
