Draper Access V Projector Screen, 104 1/4", 21:9 Ultrawide, CineFlex White XT700V, 110 V - 140093CD

Draper Access V Projector Screen, 104 1/4", 21:9 Ultrawide, CineFlex White XT700V, 110 V - 140093CD

Part Number: 140093CD
Our Price: $5,278.00
Availability: Usually ships the same business day
-
+

Description

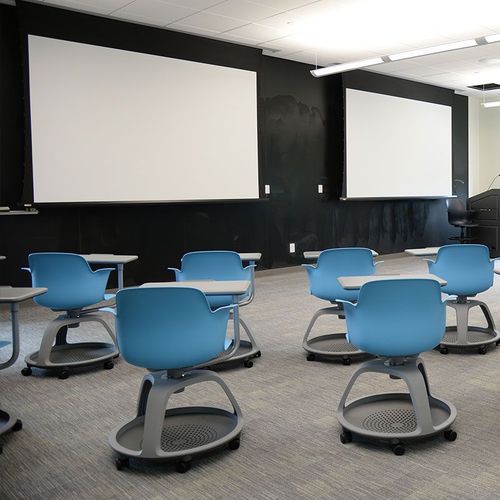

This Access V projection screen has a viewing area of 40 1/2" x 96" for a 104 1/4" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's CineFlex White XT700V projection surface.

About CineFlex White XT700V Fabric:

CineFlex White XT700V

CineFlex White XT700V
Extra Wide Viewing Cone/Typical Contrast/On-Axis Gain of 0.7

The CineFlex White XT700V white rear projection surface works well for edge matching or blending and short throw rear projection applications. A reasonable control of ambient light is recommended. Surface has a broad viewing cone and high resolution. Typically used as a rear projection surface, it can be used in dual or low gain front projection applications. This is a foldable viewing surface that can be used on folded, fixed, or roller-operated screens.


Access V Electric Projection Screen

Product Description

Ideal for mid-sized spaces, the Access V projection screen is a great choice for board rooms, classrooms, home theaters, or training rooms. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. RF welded tabs create a more durable seal eliminating separation and stickiness. The Access V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

Product Specs
  • Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 16' (488 cm) wide, depending on surface selection.
  • The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments for mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • Low-voltage, video interface or other controls can be built into housing for below ceiling access.
  • White case standard, black available upon request.
  • Custom sizes available.
  • UL Listed.
