Draper Access XL V Projector Screen, 182 3/8", 21:9 Ultrawide, Matt White XT1000VB, 220 V - 147017

Draper Access XL V Projector Screen, 182 3/8", 21:9 Ultrawide, Matt White XT1000VB, 220 V - 147017

Part Number: 147017
Our Price: $11,619.00
Availability: Usually ships the same business day
-
+

Description

This Access XL V projection screen has a viewing area of 71" x 168" for a 182 3/8" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's Matt White XT1000VB projection surface.

About Matt White XT1000VB Fabric:

Matt White XT1000VB

Matt White XT1000VB
Extra Wide Viewing Cone/Typical Contrast/On-Axis Gain of 1.0

Draper's M1300 viewing surface with a black backing for situations where ambient light behind the screen is an issue. No half-gain angle. GREENGUARD GOLD certified.


Access XL V Electric Projection Screen

Product Description

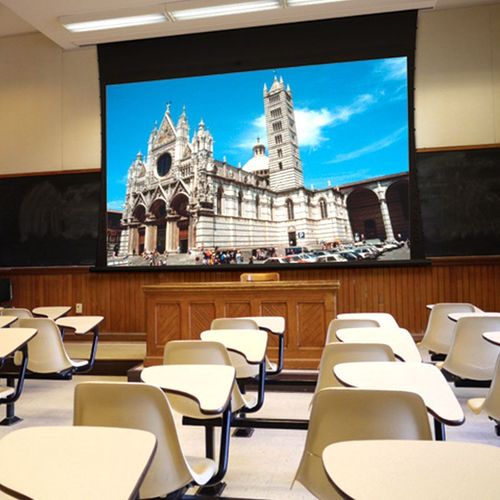

Large venues—such as ballrooms, conference centers, or university classrooms—benefit from the larger sizes available with the Access XL V projection screen. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. RF welded tabs create a more durable seal eliminating separation and stickiness. The Access XL V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

Product Specs
  • Case dimensions are 10-1/8" high x 9-7/16" deep (26 cm x 24 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 18' (549 cm) wide, depending on surface selection.
  • RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments for mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • White case standard, black available upon request.
  • Custom sizes available.
  • UL Listed.
