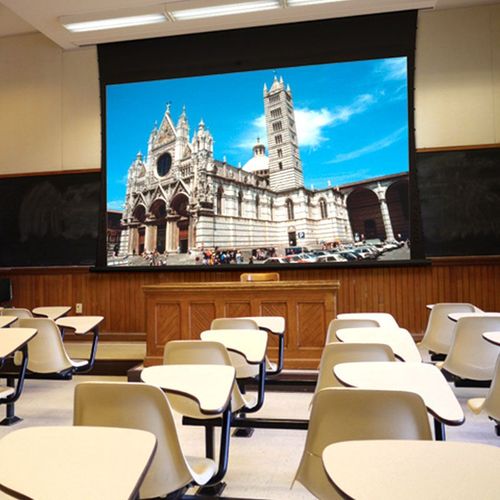

Draper Access XL V Projector Screen, 208 3/8", 21:9 Ultrawide, CineFlex CH1200V, 220 V - 147018CB

Draper Access XL V Projector Screen, 208 3/8", 21:9 Ultrawide, CineFlex CH1200V, 220 V - 147018CB

Part Number: 147018CB
Our Price: $14,560.00
Availability: Usually ships the same business day
-
+

Description

This Access XL V projection screen has a viewing area of 81" x 192" for a 208 3/8" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's CineFlex CH1200V projection surface.

About CineFlex CH1200V Fabric:

CineFlex CH1200V (formerly CineFlex)

CineFlex CH1200V
Controlled Viewing Cone/High Contrast/On-Axis Gain of 1.2

Neutral grey rear projection diffusing surface. Provides high resolution and excellent contrast, even in lighted rooms. Recommended for use with low to medium output projectors. Moderate viewing cone.


Access XL V Electric Projection Screen

Product Description

Large venues—such as ballrooms, conference centers, or university classrooms—benefit from the larger sizes available with the Access XL V projection screen. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. RF welded tabs create a more durable seal eliminating separation and stickiness. The Access XL V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

Product Specs
  • Case dimensions are 10-1/8" high x 9-7/16" deep (26 cm x 24 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 18' (549 cm) wide, depending on surface selection.
  • RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments for mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • White case standard, black available upon request.
  • Custom sizes available.
  • UL Listed.
