Draper Access XL V Projector Screen, 208 3/8", 21:9 Ultrawide, Grey XH600V, 220 V - 147018FB

Draper Access XL V Projector Screen, 208 3/8", 21:9 Ultrawide, Grey XH600V, 220 V - 147018FB

Part Number: 147018FB
Our Price: $13,952.00
Availability: Usually ships the same business day
-
+

Description

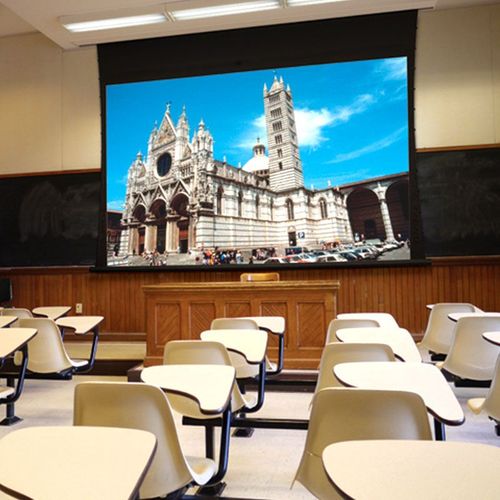

This Access XL V projection screen has a viewing area of 81" x 192" for a 208 3/8" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's Grey XH600V projection surface.

About Grey XH600V Fabric:

Grey XH600V (formerly HiDef Grey)

Grey XH600V
Extra Wide Viewing Cone/High Contrast/On-Axis Gain of 0.6

Grey front projection surface with black backing provides excellent contrast and black reproduction. Intended for use with moderate to high output digital projectors. Grey color enhances color contrast and black levels in the projected image. Also allows for more ambient light in the audience area than matt white surfaces. Relatively broad viewing cone. This surface has achieved GREENGUARD GOLD Certification. Available with black backing upon request.


Access XL V Electric Projection Screen

Product Description

Large venues—such as ballrooms, conference centers, or university classrooms—benefit from the larger sizes available with the Access XL V projection screen. This tab-tensioned electric screen offers a perfectly flat viewing surface for better image quality. RF welded tabs create a more durable seal eliminating separation and stickiness. The Access XL V provides installation of the ceiling-recessed case during the initial construction phase. This allows the screen to be installed at a later time to eliminate job site damage. The bottom access panel provides easier service and maintenance.

Product Specs
  • Case dimensions are 10-1/8" high x 9-7/16" deep (26 cm x 24 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
  • Maximum image width up to 18' (549 cm) wide, depending on surface selection.
  • RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Adjustable or removable hoisting brackets included for easy lifting during installation.
  • Sliding brackets on top of the case allow for adjustments for mounting.
  • Sliding brackets inside case accommodate different size screens.
  • Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
  • White case standard, black available upon request.
  • Custom sizes available.
  • UL Listed.
