Draper Acumen V Projector Screen, 104 1/4", 21:9 Ultrawide, ClearSound NanoPerf XT1000V, 110 V - 154116SC

This Acumen V projection screen has a viewing area of 40 1/2" x 96" for a 104 1/4" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's ClearSound NanoPerf XT1000V projection surface.

About ClearSound NanoPerf XT1000V Fabric:

An acoustically-transparent surface, full 180° viewing cone, and accurate color reproduction makes the ClearSound NanoPerf XT1000V ideal for home theaters. NanoPerf refers to microscopic perforation patterns in a projection screen that allow sound to travel from speakers behind the screen to ensure a quality cinematic experience. Acoustically-transparent NanoPerf is ideal when viewers are at least 10’ (305 cm) from the screen.

Acumen® V Electric Projection Screen

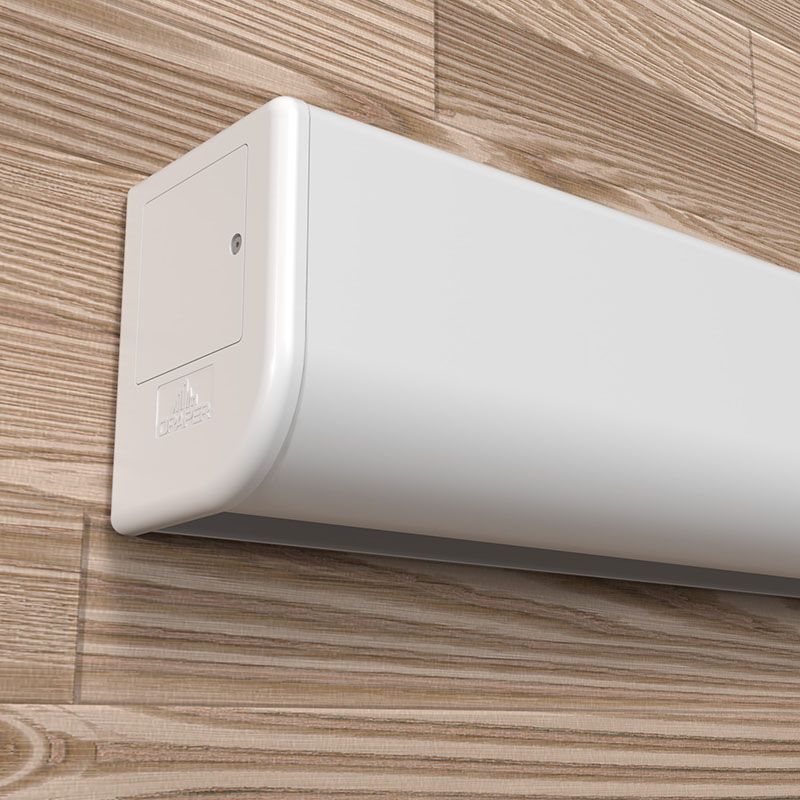

Acumen® V presents an attractive below the ceiling projection screen designed to meet the demand of heavy use yet fit seamlessly into today's elegant interiors. The smooth, curved aluminum housing and white powder coat finish complement any room design. Floating mounting brackets provide this tab-tensioned, wall- or ceiling-mounted electric screen quick and easy installation. RF welded tabs create a more durable seal eliminating separation and stickiness for a perfectly flat viewing surface with enhanced image quality. Fascia is easily removable if maintenance is required. A wide variety of motor and control options including quiet and low voltage are available.

• Case dimensions: 7-1/8” h x 5-7/8” d (181 mm x 149 mm). Extruded aluminum housing with white powder coated or optional black finish.
• Maximum image width up to 10’ (305 cm) wide.
• Full line of Draper® viewing surfaces including TecVision® are available for the Acumen® V.
• Rear projection surfaces available.
• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
• Streamlined extruded aluminum case finished in white powder coat (standard), black available upon request.
• Fascia removable for easy access to roller and motor for service.
• Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.

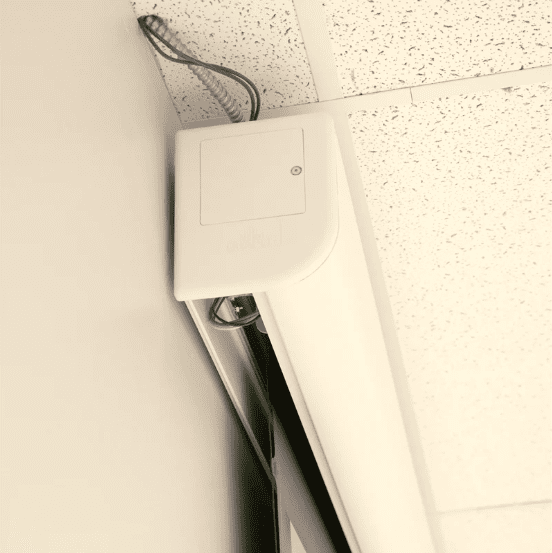

• Floating mounting brackets included. Ceiling suspension brackets available.
• Custom sizes available.
• UL Listed.
• Seven-year warranty. *USA and Canada only.
