Draper Acumen V Projector Screen, 104 1/4", 21:9 Ultrawide, CineFlex White XT700V, 110 V, with Quiet Motor - 154117CDQ

Draper Acumen V Projector Screen, 104 1/4", 21:9 Ultrawide, CineFlex White XT700V, 110 V, with Quiet Motor - 154117CDQ

Part Number: 154117CDQ
Our Price: $5,040.00
Availability: Usually ships the same business day
-
+

Description

This Acumen V projection screen has a viewing area of 40 1/2" x 96" for a 104 1/4" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's CineFlex White XT700V projection surface.

About CineFlex White XT700V Fabric:

CineFlex White XT700V

CineFlex White XT700V
Extra Wide Viewing Cone/Typical Contrast/On-Axis Gain of 0.7

The CineFlex White XT700V white rear projection surface works well for edge matching or blending and short throw rear projection applications. A reasonable control of ambient light is recommended. Surface has a broad viewing cone and high resolution. Typically used as a rear projection surface, it can be used in dual or low gain front projection applications. This is a foldable viewing surface that can be used on folded, fixed, or roller-operated screens.


Acumen® V Electric Projection Screen

Product Description

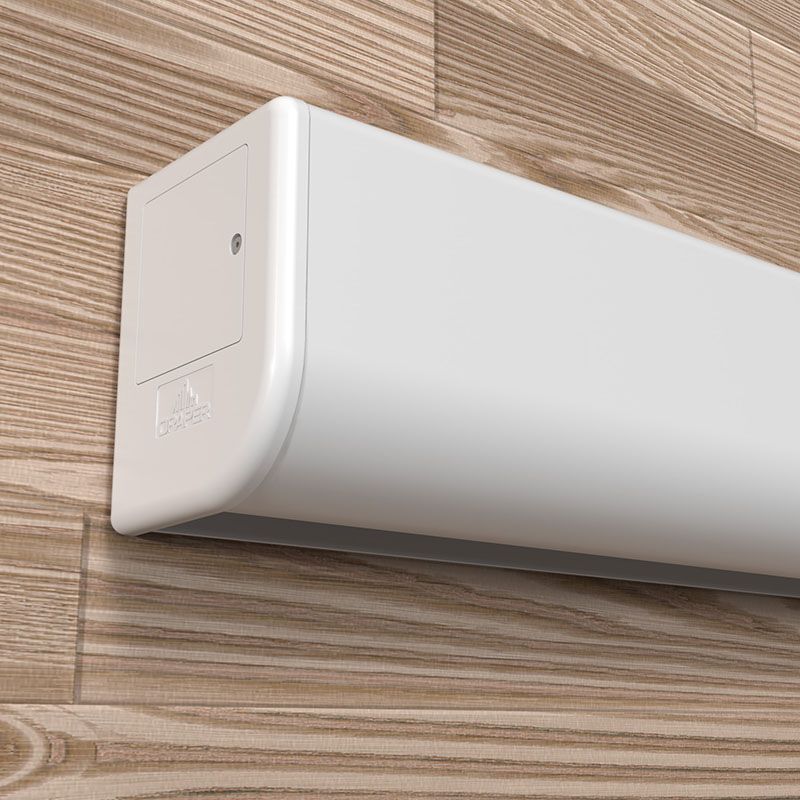

Acumen® V presents an attractive below the ceiling projection screen designed to meet the demand of heavy use yet fit seamlessly into today's elegant interiors. The smooth, curved aluminum housing and white powder coat finish complement any room design. Floating mounting brackets provide this tab-tensioned, wall- or ceiling-mounted electric screen quick and easy installation. RF welded tabs create a more durable seal eliminating separation and stickiness for a perfectly flat viewing surface with enhanced image quality. Fascia is easily removable if maintenance is required. A wide variety of motor and control options including quiet and low voltage are available.

Product Specs
  • Case dimensions: 7-1/8” h x 5-7/8” d (181 mm x 149 mm). Extruded aluminum housing with white powder coated or optional black finish.
  • Maximum image width up to 10’ (305 cm) wide.
  • Full line of Draper® viewing surfaces including TecVision® are available for the Acumen® V.
  • Rear projection surfaces available.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Streamlined extruded aluminum case finished in white powder coat (standard), black available upon request.
  • Fascia removable for easy access to roller and motor for service.
  • Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
  • Floating mounting brackets included. Ceiling suspension brackets available.
  • Custom sizes available.
  • UL Listed.
  • Seven-year warranty. *USA and Canada only.
