Draper Acumen V Projector Screen, 126", 21:9 Ultrawide, Grey XH600V, 110 V - 154117FB

Draper Acumen V Projector Screen, 126", 21:9 Ultrawide, Grey XH600V, 110 V - 154117FB

Part Number: 154117FB
Our Price: $4,622.00
Availability: Usually ships the same business day
-
+

Description

This Acumen V projection screen has a viewing area of 49" x 116" for a 126" diagonal measurement. The "ultrawide" 21:9 aspect ratio is equivalent to a 4:3 NTSC display next to a 16:9 widescreen display. Uses Draper's Grey XH600V projection surface.

About Grey XH600V Fabric:

Grey XH600V (formerly HiDef Grey)

Grey XH600V
Extra Wide Viewing Cone/High Contrast/On-Axis Gain of 0.6

Grey front projection surface with black backing provides excellent contrast and black reproduction. Intended for use with moderate to high output digital projectors. Grey color enhances color contrast and black levels in the projected image. Also allows for more ambient light in the audience area than matt white surfaces. Relatively broad viewing cone. This surface has achieved GREENGUARD GOLD Certification. Available with black backing upon request.


Acumen® V Electric Projection Screen

Product Description

Acumen® V presents an attractive below the ceiling projection screen designed to meet the demand of heavy use yet fit seamlessly into today's elegant interiors. The smooth, curved aluminum housing and white powder coat finish complement any room design. Floating mounting brackets provide this tab-tensioned, wall- or ceiling-mounted electric screen quick and easy installation. RF welded tabs create a more durable seal eliminating separation and stickiness for a perfectly flat viewing surface with enhanced image quality. Fascia is easily removable if maintenance is required. A wide variety of motor and control options including quiet and low voltage are available.

Product Specs

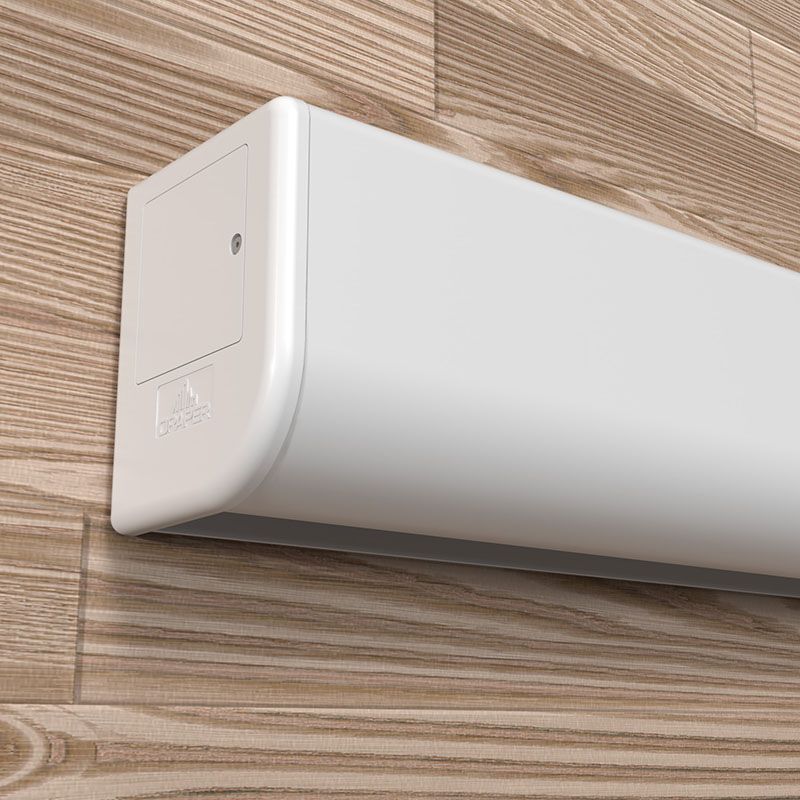

  • Case dimensions: 7-1/8” h x 5-7/8” d (181 mm x 149 mm). Extruded aluminum housing with white powder coated or optional black finish.
  • Maximum image width up to 10’ (305 cm) wide.
  • Full line of Draper® viewing surfaces including TecVision® are available for the Acumen® V.
  • Rear projection surfaces available.
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
  • Streamlined extruded aluminum case finished in white powder coat (standard), black available upon request.
  • Fascia removable for easy access to roller and motor for service.
  • Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
  • Floating mounting brackets included. Ceiling suspension brackets available.
  • Custom sizes available.
  • UL Listed.
  • Seven-year warranty. *USA and Canada only.
