Draper Access XL E Recessed Electric Projection Screen

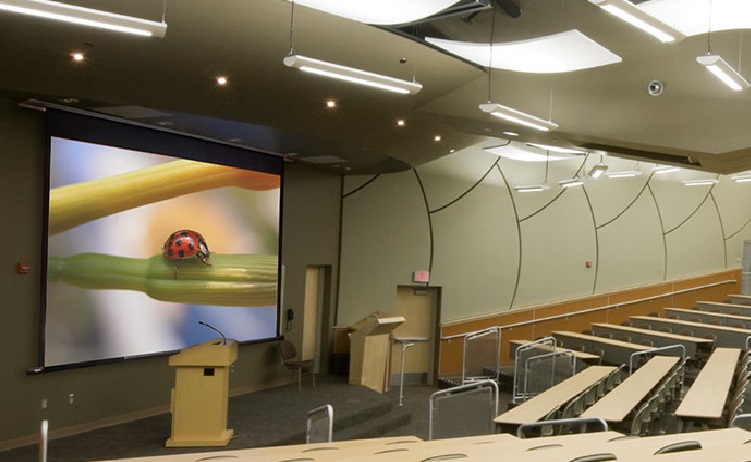

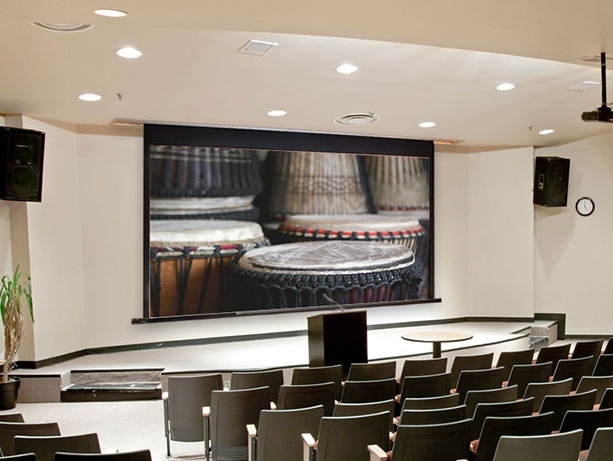

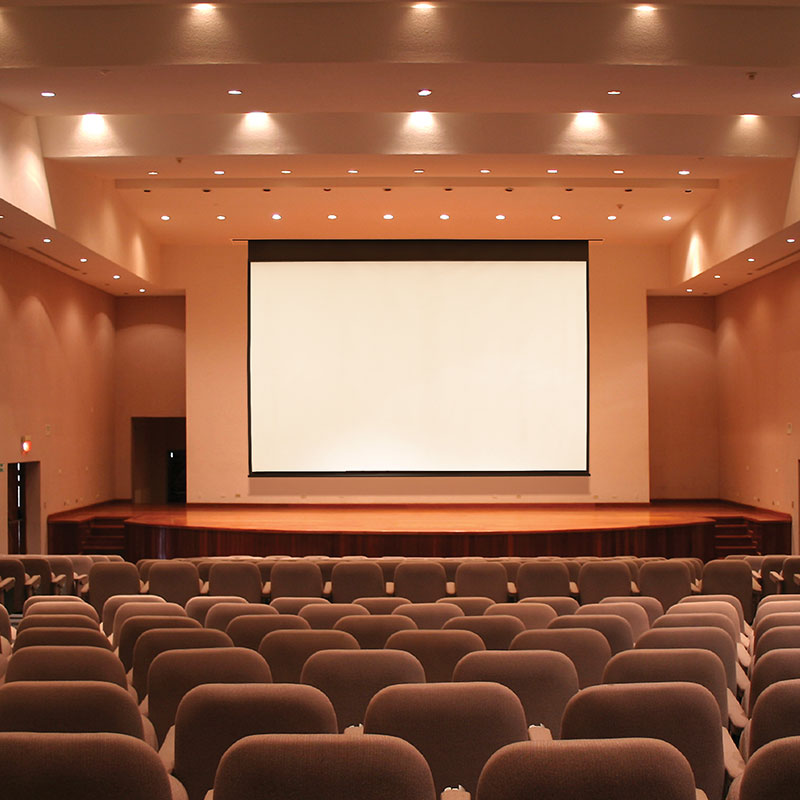

Larger venues—such as ballrooms, conference centers, or university classrooms—benefit from the larger projection screen sizes available in the ceiling-recessed Access XL E electric projection screen. The bottom closure panel provides access to all components for easier service and maintenance. Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation of the screen at a later time.

Product Specs

• Case dimensions are 10-1/8" high x 9-7/16" deep (26 cm x 24 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions.
• Maximum image width up to 20' (610 cm) wide, depending on surface selection.
• Black drop standard, depending on screen size. Extra drop above image area available upon request.
• Adjustable or removable hoisting brackets included for easy lifting during installation.
• Sliding brackets on top of the case allow for adjustments for mounting.
• Sliding brackets inside case accommodate different size screens.
• Bottom access panel door detachable for easy service and maintenance.
• Includes a 110V, 3-position switch (standard). Quiet, low-voltage motors and 220V options available.
• White case standard, black available upon request.
• Custom sizes available.
• UL Listed.
