Draper Access V Tensioned Recessed Electric Projection Screen

A premium projection screen making it the choice for boardrooms, mid-sized training rooms, classrooms, or home theaters. The bottom closure panel provides access to all components for easier service and maintenance. Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation of the screen at a later time.

Product Specs

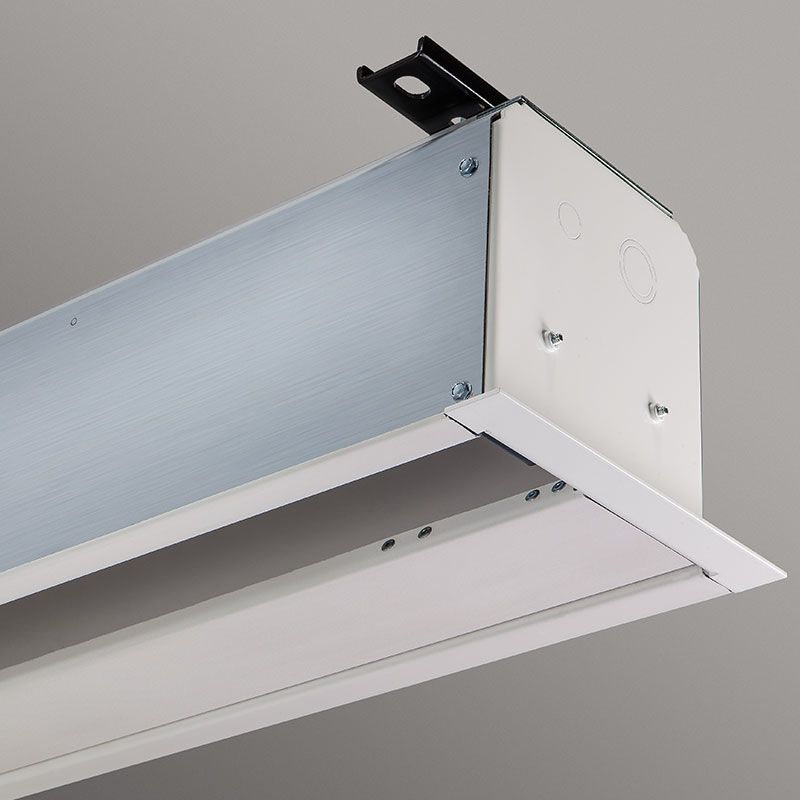

• Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length.
• Maximum image width up to 16' (488 cm) wide, depending on surface selection.
• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
• Adjustable or removable hoisting brackets included for easy lifting during installation.
• Sliding brackets on top of the case allow for adjustments for mounting.
• Sliding brackets inside case accommodate different size screens.
• Bottom access panel door detachable for easy service and maintenance.
• Quick-connect wiring allows for early installation of the case with the addition of the screen later.
• Low voltage, video interface or other controls can be built into housing for below ceiling access.
• Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options available.
• White case standard, black available upon request.
• Custom sizes available.
• UL Listed.
