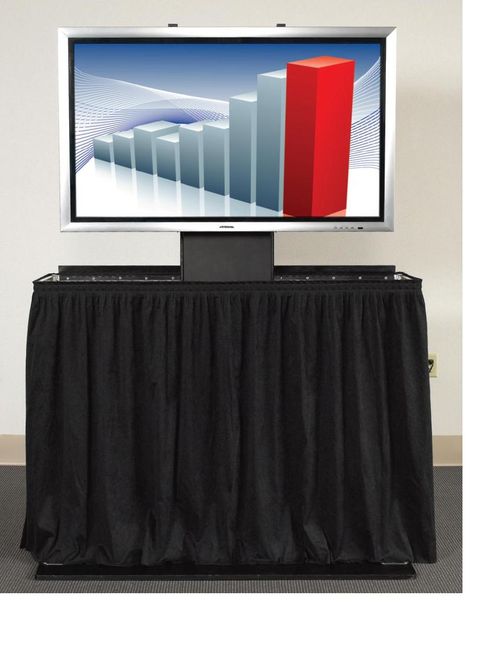

Draper Flatscreen Lift/Case Combo For Displays 50" to 65"

Flat panel television NOT included with cart

Product Sheet and Set-up Guide


It's safe. It's rugged. One Person Can set it up in minutes.

About the FlatScreen Lift

• Unique, synchronous multi-stage design enables vertical extension of almost 2½ times the stored height. Fully adjustable to any position within range. Gets the display up where your audience can see it.
• Furnished complete with surge protector, RF and push button control.

About the case:

RUGGED

• The top, bottom and stabilization plates are constructed of 18 mm birch plywood. The sides are constructed of 9 mm birch plywood. Panels are secured with steel rivets to 1” x 1” welded tubular aluminum frame. All exterior surfaces coated with Sound Guard textured chemical skin.
• Two case sizes to lift flat screen displays up to 65” diagonal.
• ATA design with all recessed latches and handles.

SAFETY

• 4” casters rest in caster dishes on a stabilization base plate, and case is secured to plate with tie downs.
• Perfectly stable in fully extended position. Base plate attaches to case when not in use.
• Flat screen display rests on foam bed in “down” position, and is surrounded on all six sides with foam when case is closed.
• Each lift/case combo is designed specifically for your make and model of flat screen display.

Also includes

• One recessed Hubble brand 120 volt power input receptacle.
• Carpeted accessories compartment.
• Accessory shelf.

Average setup time = .13 man hours. Compare with your current setup time.

Accessories

• Locking casters - $20.00 per pair.
• Black skirt (Surrounds case on three sides) - $70.00

Built-in monitor inputs by quotation. Call for other custom needs.
