Draper Motorized FlexShade® RTS AC

The Motorized FlexShade® RTS AC window shade offers a 3-wire motor that features parallel wiring, electronic programmable limits, and a multitude of control options. With a hand-held remote control and Plug & Play options, this easily programmable shade is the ideal choice for the office, boardroom, small commercial settings, residential, and church applications.

• Available in sizes from 29-1/2" to 168" (75 cm to 427 cm) wide, depending on fabric selection. Larger sizes available with FlexShade 2 or Colossal FlexShade.
• Shades can be coupled to reduce the number of motors required.
• Secure moisture resistant connection to line voltage using M12 Connector or Plug & Play option using three-prong NEMA plug.
• Motors can be parallel wired (daisy chained).
• Optional sun sensor or timer with on-screen display.
• Wireless wall switches available in 1, 2, 3, 4, or 5 channels. Handheld remotes are available in 1, 4, or 16 channels.
• Serial and dry contact interfaces available.
• Optional App control is available.

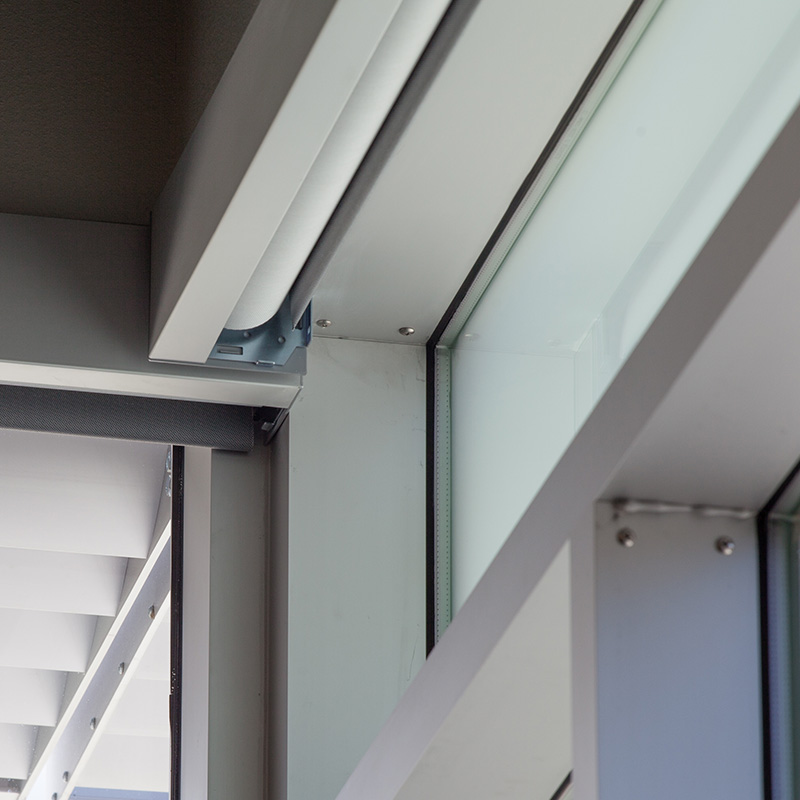

• Multiple hardware options for surface mounting, including brackets (standard), fascia with endcaps, or headbox with closure.
• Recess mount hardware includes pocket headbox or Pocket D headbox with tile lip. Where a pocket already exists a wall clip and closure are available with or without a tile lip.
• Hardware finish choices: clear anodized (standard), black, white, ivory, or charcoal bronze. Custom powder coat colors available.
• Compatible with U, H, and L channels for light-gap reduction.
• Optional dual rollers available upon request.
• Dual roller hardware components include: Dual Roller Endcaps, Dual Roller Fascia, and Dual Roller Pocket Headbox. Options may vary by product type. See technical documents for details.
• Dual Roller Fascia finish choices: clear anodized (standard), black, white, ivory, or charcoal bronze. Custom powder coat colors available.
• Dual Roller Pocket Headbox finish choices: gray inside/white outside or white inside/gray outside with a white wall clip.
• Product designed for interior use.

• Submittal Form
