Draper Access E Recessed Electric Projection Screen

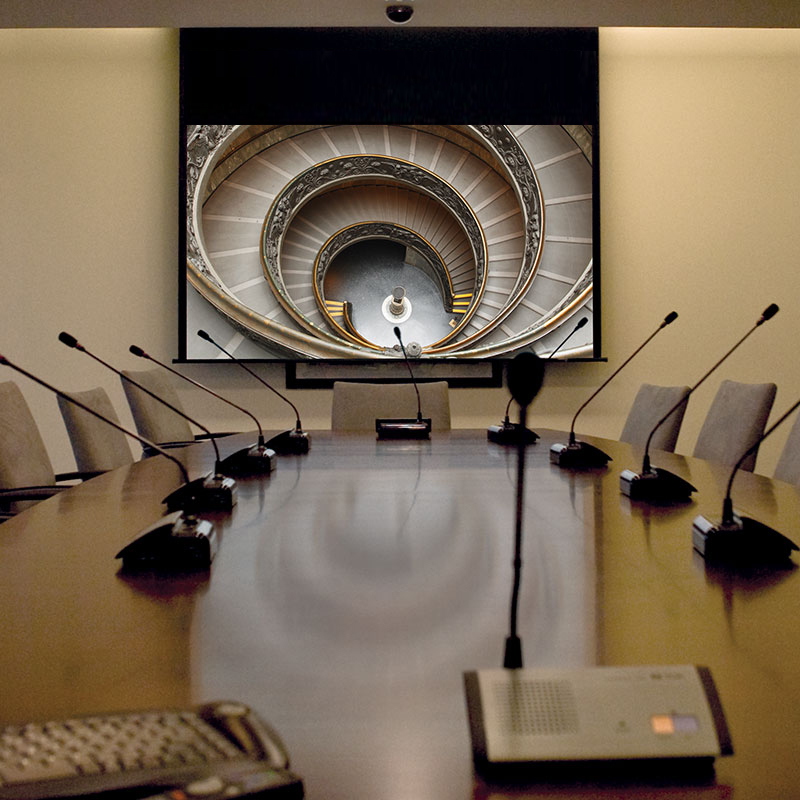

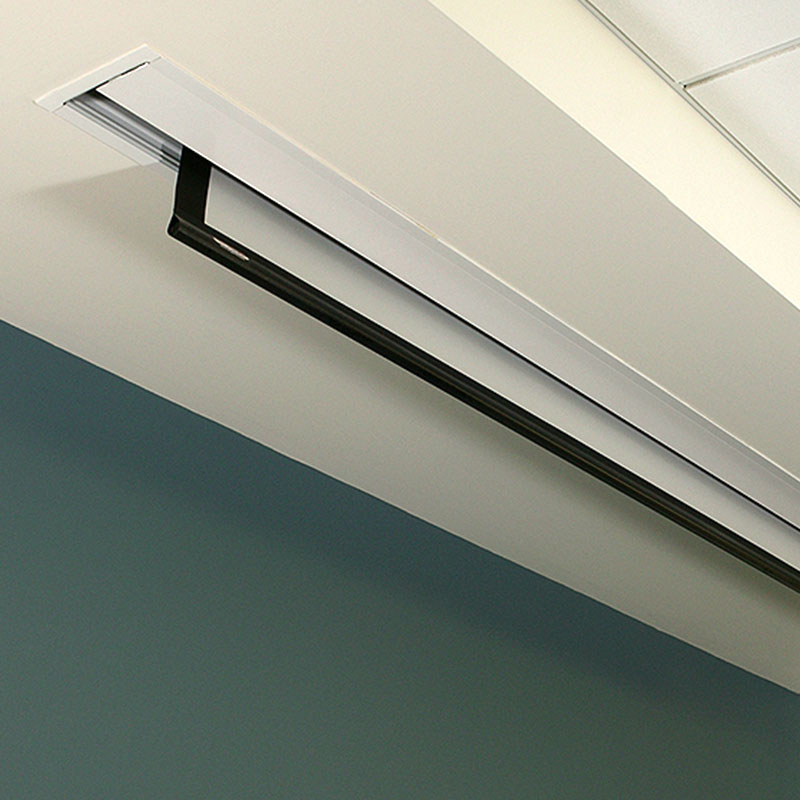

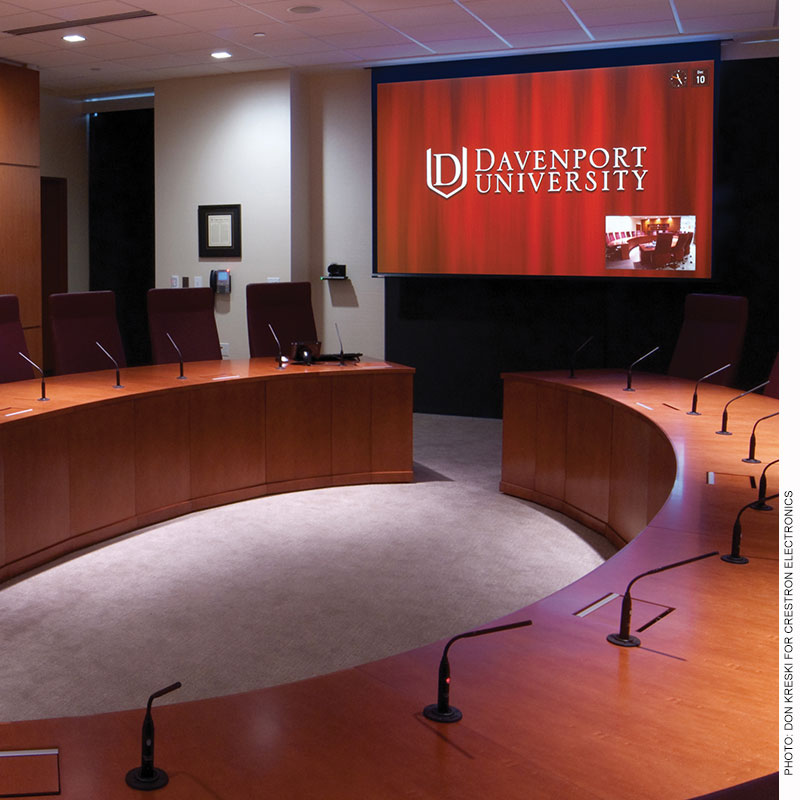

Draper Access E electric projection screen is an ideal fit for small- to medium-size spaces, such as boardrooms, mid-sized training rooms, universities, or home theaters. The bottom closure panel provides access to all components for easier service and maintenance. Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation of the screen at a later time.

Product Specs

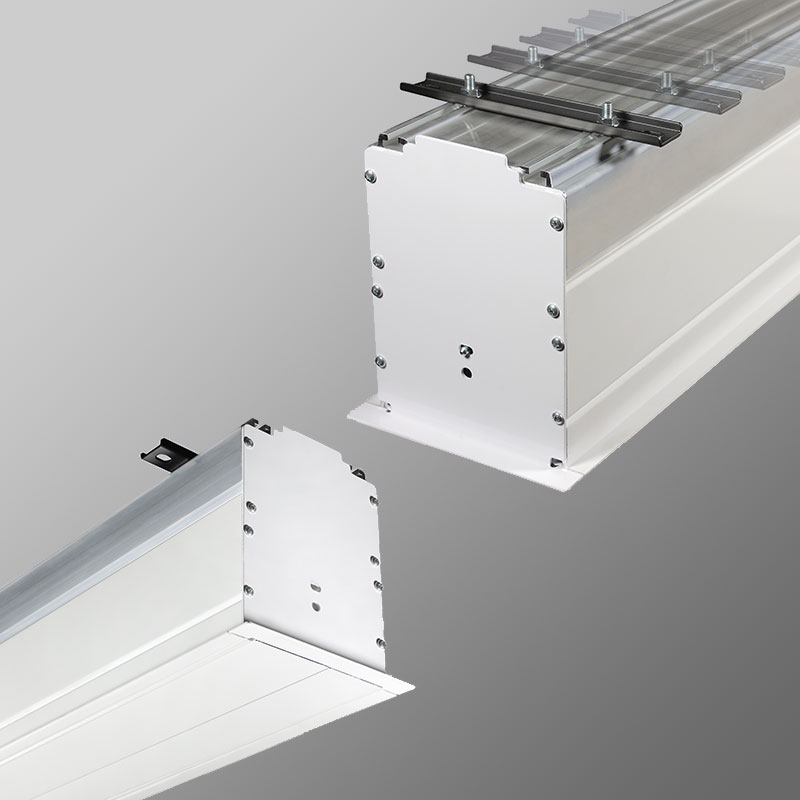

• Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions.
• Maximum image width up to 16' (488 cm) wide, depending on surface selection.
• Adjustable or removable hoisting brackets included for easy lifting during installation.
• Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.
• Sliding brackets on top of the case allow for adjustments when mounting.
• Sliding brackets inside case accommodate different size screens.
• Bottom access panel door is detachable for easy service or maintenance.
• Quick-connect wiring allows for early installation of the case with the addition of the screen later.
• Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
• Low voltage, video interface or other controls can be built into housing for access from below ceiling.
• White case standard, black available upon request.
• Custom sizes available.
• UL Listed.
