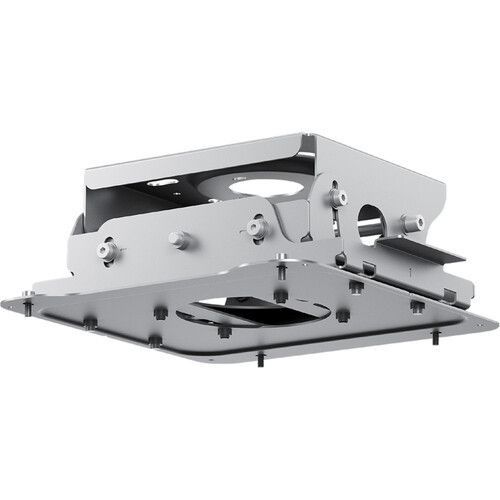

Epson ELPMB67 EPSON Projector Ceiling Mount - V12HA54010

Convenient ceiling mount for fast, easy projector adjustment.

Simplify projector installations with the versatile ELPMB67 projector ceiling mount. Designed with flexibility in mind, this convenient ceiling mount easily supports a variety of projector adjustments including vertical, horizontal and rotational tilt to accommodate a range of applications. Plus, the mount offers a convenient forward and backward slide capability ideal for lenses that lack zoom features such as ultra-short throw lenses (UST). The ELPMB67 supports 360-degree directional mounting and includes M6 bolt holes for easy truss mounting via clamps. Pair with the ELPFP15 suspension adapter for high-ceiling mount applications.

ELPFP15 suspension adapter sold separately

OVERVIEW

Provides a wide range of adjustment options — including vertical, horizontal and rotational tilt

Forward and backward slide capability — compensates for lenses that lack zoom, such as ultra short-throw lenses

Flexible installation — pair with the ELPFP15 suspension adapter for high-ceiling mount applications

Supports 360-degree directional mounting — for portrait-projection, inclined-ceiling and desktop-mounting applications

Easy truss mounting — two M6 bolt holes for easy truss mounting via truss clamps (not included)

Tilt angle — vertical: +5 to -15 degrees; horizontal: +5 to -5 degrees

Horizontal rotation angle — +5 to -5 degrees

Forward/backward slide — +/- 36 mm

Durable design — supports up to 88 lb/40 kg; unit weight: 12.6 lb/5.7 kg

Convenient handling — two handling grips to help lift with projector attached
