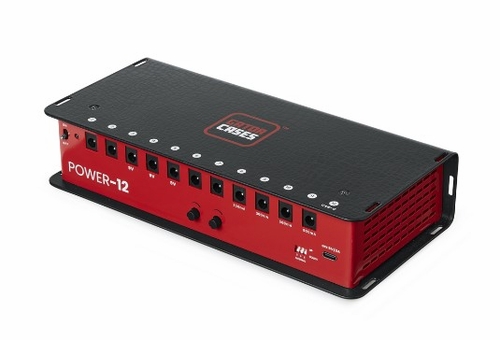

Gator Cases Pedalboard Power Supply; 12 Outputs ? 2300Ma - GTR-PWR-12

Gator Cases Pedalboard Power Supply; 12 Outputs ? 2300Ma - GTR-PWR-12

Part Number: GTR-PWR-12
Our Price: $179.99
Availability: Usually ships the same business day
-
+

Description

Pedalboard Power Supply; 12 Outputs ? 2300Ma

Guitar Effects Pedal Power Supply with 12 Isolated Outputs – 2300mA

Key Features
  • Guitar Effects Pedal Power Supply with 12 Isolated Outputs
  • Outputs: 2 x 18V DC @ 120mA, 3 x 9/12V DC @ 120mA, 2 x 4~9V DC @ 120mA, 2 x 9V DC @ 300mA, 2 x 9V DC @ 500mA, 1 x USB @ 5V/2A (10W), 1 x AC Outlet
  • Maximum Output Current: 2300mA
  • AC Power Input with Switchable Voltage Between 115V/240V (50-60Hz) for International Use
  • AC Power Input with Switchable Voltage Between 115V/230V (50Hz-60Hz) for International Use
  • Voltage Adjustable on Outputs 3, 4 & 5 via DIP Switches
  • Continuously Variable Voltage (4v ~ 9v) on Two (2) Outputs to Simulate Low Battery Effects
  • AC Outlet on Rear Side
  • Integrated Slots Allow for Direct Mounting to Pedal Board
  • On/Off Power Switch with LED Indicator Light
  • Heavy-Duty All Metal Enclosure with Slotted Vents for Heat Dissipation
  • Product Dimensions: 9.88”/251mm (L) x 4.5”/114mm (W) x 2”/51mm (H). Net Weight: 3.8 lbs./1.72 kg

Specifications

  • Model: GTR-PWR-12
  • UPC: 716408554105
  • Exterior Dimensions:
    • Length 9.88"
    • Width 4.50"
    • Height 2.00"
    • Weight 3.80 lbs
