Description

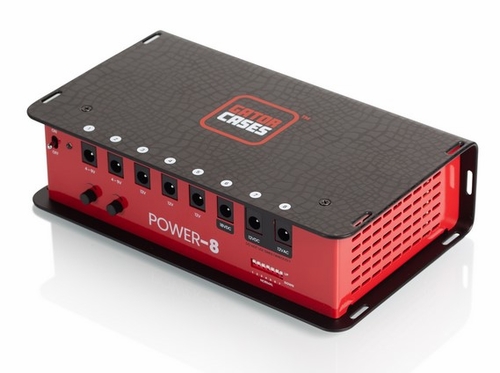

Pedal Board Power Supply With 8 Isolated Outputs
Key Features- Guitar Effects Pedal Power Supply with 8 Isolated Outputs
- Outputs: 2 x 4~9V DC @ 120mA, 3 x 9/12V @ 120mA, 1 x 9/18V DC @ 250mA, 1 x 9/12V DC @ 250mA, 1 x 12V AC @ 500mA
- Maximum Output Current: 1600mA
- AC Power Input with Switchable Voltage Between 115V/240V (50-60Hz) for International Use
- Voltage Adjustable via DIP Switch & SAG Knobs (min 4V - max 9V)
- Heavy-Duty All Metal Enclosure with Slotted Vents for Heat Dissipation
- Integrated Slots Allow for Direct Mounting to Pedal Board
- On/Off Power Switch with LED Indicator Light
- Includes (x1) Power Cable, (x8) DC Power Cables, (x1) AC Power Cable, (x1) Polarity Inverter Cable, (x1) Voltage Doubler Cable, (x1) Mini Jack Cable
- Product Dimensions: 7.28”/185mm (L) x 4.25”/108mm (W) x 1.93”/49mm (H), Net Weight: 3 lbs./1.36 kg
Specifications
- Model: GTR-PWR-8
- UPC: 716408551531
- Exterior Dimensions:
- Length 7.28"
- Width 4.25"
- Height 1.93"
- Weight 3.00 lbs
- Shipping Dimensions:
- Length 9.44"
- Width 7.87"
- Height 2.56"
- Weight 3.75 lbs
Reviews
