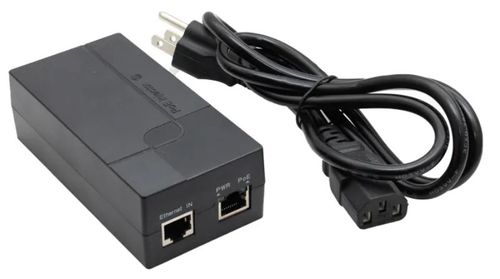

Hall Technologies 511-POH-30W PoH Compliant Power Inserter, - 511-POH-30W
![Free Shipping](https://s.turbifycdn.com/aah/focusedtechnology/peerless-9-11-adjustable-extension-column-adj0911-52.jpg)
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
511-POH-30W PoH Compliant Power Inserter
The 511-POH-30W is a PoH compliant power inserter that can be used to power one end of an HDBaseT™ link. It passes the UTP signals across while at the same time injects 48v power for the PD (powered device). The supply complies with the IEEE 802.3af and will only apply power to the cable if a compliant device is connected.
For example, you can use the power injector to power the UHBX-S-WP wall plate transmitter if the receiver does not supply power via the UTP cable. Some TV’s and projectors have direct HDBaseT™ inputs (receiver is built in to the display), but may not be able to send power to the wall plate. So, to connect the Wall-plate transmitter to the display, the 511-POH-30W inserter can be utilized.
- Self-contained HDBaseT Power Injector
- 100-240VAC Universal Input
- Desktop Style
- IEEE802.3af Compliant
- Load Diagnostic LED
- Overload Shutdown and Short Circuit Protection
- Regulated Output With Low Ripple
- Complies with EMI/RFI Regulations
- CE Compliant, UL Listed
Specifications
Power | Total Power - 33 W (max power consumption at full load) | PoE Power - 30 W | AC Input Voltage - 100~230 VAC | Output Voltage - 48~52 VDC |
Signal Compatibility | PoE Standard - IEEE 802.3af | HDBaseT - PoH for HDBaseT 1.0 Class A, B and 2.0 | RJ45 Power - end-span: 1/2,3/6 spare line pair (default); mid-span: 4/5, 7/8 data-pair |
Compliance | CE mark (commercial),FCC Part 15 Class B, RoHS, WEEE MTBF - 100,000 hours (Calculated Estimate) |
