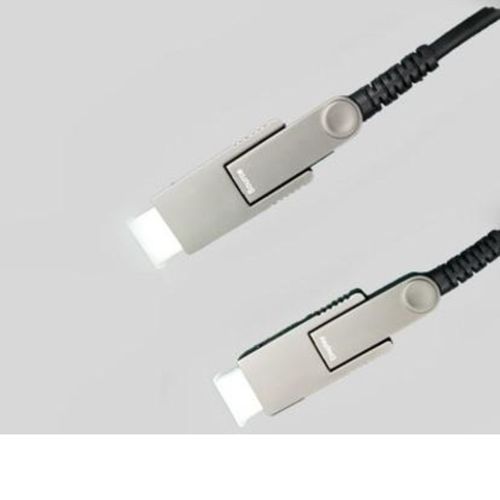

Hall Technologies 30 METER 4K Javelin Plenum Optical HDMI Cable w/Detachable Ends, - CHD-JAV4K-DE30
![Free Shipping](https://s.turbifycdn.com/aah/focusedtechnology/peerless-9-11-adjustable-extension-column-adj0911-52.jpg)
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Hall Technologies CHD-JAV4K-DE30 30 METER 4K Javelin Plenum Optical HDMI Cable
This Hall Technologies CHD-JAV4K-DE30 30 METER 4K Javelin Plenum Optical HDMI Cable w/Detachable Ends is engineered to be versatile to any application and installation. It supports 18Gbps while maintaining a lightweight and flexible design. The cable ships with detachable HDMI connectors so it is ready for connection to your video equipment, but users can purchase extra DVI detachable ends allowing for DVI-to-HDMI or DVI-to-DVI configurations using the same cable.
A pulling capsule with eyelet is provided in each package to aid with pulling. The capsule snaps onto the proprietary connector at the cable’s end. The plug-n-play cable requires no external power supply. Power is drawn from the 5v signal pin of the source HDMI output. The cable draws less than 0.25w of power from the source.
The Javelin™ 4K Plenum-rated cable can be used as a regular HDMI cable but without the worry of boosters or equalizers; being Plenum rated, also makes it possible to be used in any installation environment. Applications include home theater, conference rooms, schools, airports, hospitals, and more.
- Supports a wide range of resolutions up to 4K@60Hz (color space 4:4:4) 3D and Deep color
- Supports 18Gbps Maximum Data Rate
- Supports Multi-channel audio, Dolby True HD, DTS-HD Master Audio
- HDMI compliant: EDID, CEC, HDCP (2.2), HDR (High Dynamic Range)
- Reduced EMI and RFI
- High pulling strength and compression load
Specifications
Input | Cable Connector: Proprietary Connector, Detachable Connector: HDMI Type A to Proprietary Connector |
Output | Cable Connector: Proprietary Connector, Detachable Connector: HDMI Type A to Proprietary Connector |
Video Standards | Single Link DVI: Up to 2560x1600, HDMI/HDTV : Up to 4K@60Hz (4:4:4), 3D, Deep color, HDR |
Bandwidth | 18Gbps |
Aux Data | Up to HDCP 2.2 compliant, EDID, CEC |
Audio Standards | Supports PCM, Multi-channel audio, Dolby, True HD, DTS-HD |
Supply Voltage | Powered from Source (HDMI/DVI), Nominal: 5v (operating range: 4.5v ~ 5.5 v), Optional Power Injector Cable Included (Micro USB Male to USB A Male) |
Power Consumption | Nominal: 0.23 watts (range: 0.2w ~ 0.25w) |
Supply Current | Nominal: 40 ma, max: 47 ma |
EMI/EMC | CE, FCC Class A |
Connector Pull Strength | 20 Kg (44 lbs) maximum |
Grade | Plenum CMP c(UL) & FT6 |
