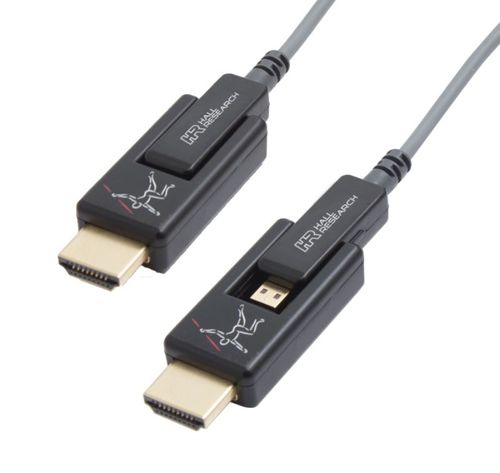

Hall Technologies 50 METER 4K Javelin Plenum Optical HDMI Cable w/Detachable Ends, - CHD-JAV4K-DE50
![Free Shipping](https://s.turbifycdn.com/aah/focusedtechnology/peerless-9-11-adjustable-extension-column-adj0911-52.jpg)
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Hall Technologies CHD-JAV4K-DE50 4K Javelin™
Hall Technologies 4K Javelin™ Active Plenum HDMI extension cables utilize the latest in optoelectronic technology to transmit HDMI signals far beyond the typical limitations of copper cables. The CHD-DExx 4K Javelin™ cables have the added benefit of detachable or removable HDMI connector ends. The cable itself has a small (micro HDMI size) connector that can be pulled through small holes, pipes or conduits. Currently the cable is available at lengths of 10, 23, 46, 60 and 100 meters (33, 75, 150, 200 and 333 ft). Replace * in part number with length in meter, for example CHD-DE23 is 23 meters long
Among the impressive features of the 4K Javelin™ is its indifference to the resolution that is being extended. It has the ability to handle any resolution or color depth including non-standard video formats as long as the maximum data rate is less than 10.2 Gbps. No compression is used so the image at the far end of the cable is 100% identical to the source. Since the video is sent using light pulses, the cable provides higher immunity to EMI or RFI interference and there is less chance of video dropouts due to environmental electromagnetic noise.
- Supports virtually all HDMI and DVI Resolutions Including 4K UHD
- Thin, Flexible and Lightweight (only 12 oz for 15m (50ft) cable)
- Hybrid Fiber-Optic / Copper Construction
- Plug and Play, No Power Supply Required
- Available in standard lengths of 10, 15, 23, 46, 60 and 100 meters (33, 50, 75, 100, 150, 200 and 333 ft)
- Meets International Flame Retardant Standards : UL CMP-OF (Plenum), IEC LSZH
- Supports DDC for HDCP and EDID, CEC
Specifications
Input | Micro HDMI connector (Proprietary pinout, do not plug to micro HDMI device) |
Output | Micro HDMI connector (Proprietary pinout, do not plug to micro HDMI device) |
Video Standards | All Single Link DVI and HDMI resolutions upto 3840×2160 @ 30 (4K UHD), Supports Deep color, xvYCC Color |
Bandwidth | 10.2 Gbps max (or channel rate of 3.4 Gbps max) |
Aux Data | Supports DDC for HDCP and EDID, CEC |
Audio Standards | Supports PCM, Dolby, True HD, DTS-HD |
Supply Voltage | Powered from HDMI 5v pin 18. |
Nominal | 5v (operating range: 4.8v ~ 5.3 v) |
Supply Current Nominal | 40 ma, max: 47 ma |
Power Consumption Nominal | 0.23 watts (range: 0.2w ~ 0.25w) |
Connector Pull Strength | 20 Kg (44 lbs) maximum |
Grade | Plenum CMP-OF (UL) & LSZH |
