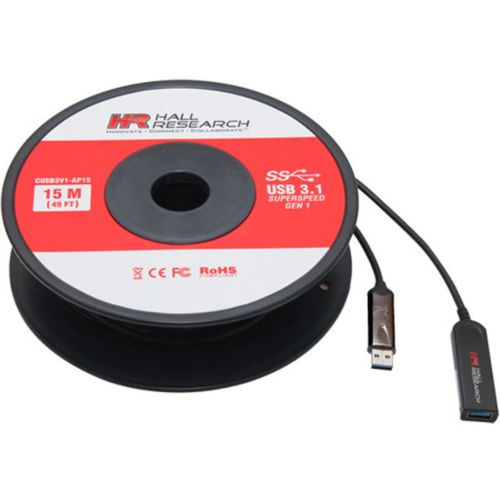

Hall Technologies 15 Meter USB 3.0/3.1 Gen 1 Javelin Active Optical Plenum Cable, - CUSB3V1-AP15

Hall Technologies 15 Meter USB 3.0/3.1 Gen 1 Javelin Active Optical Plenum Cable, - CUSB3V1-AP15

Part Number: CUSB3V1-AP15
Our Price: $323.95
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Hall Technologies CUSB3V1-AP15 4k USB 3.0 and 3.1 Gen1 Javelin AOC Plenum Cable with Power

Available in lengths of 15, 30, and 50 meters, CUSB3V1-AP cables support transparent extension of USB 3.1 Gen1 Super-Speed at data rates of up to 5 Gbps. It is also downward compatible with USB 2.0 or 1.1 devices. An additional 5 volt regulator on the receiver end will boost the power to compensate for power hungry USB cameras.

CUSB3V1-AP cables are compatible with virtually all USB 3.0 and 3.1 Gen1 devices, and is a perfect solution for extending 4K videoconferencing cameras, video capture, docking stations, and other high-speed data communication. They also work with USB 2.0 or 1.1 devices although this feature is only available for PCs running Windows™ and needs a driver installation. Driver installation is not required for extending purely USB 3.0 devices on any platform (PC, Mac, Linux).

The cable is a light-weight hybrid of fiber and copper, and is plenum rated to ensure compliance with modern building codes. The small cable ends can be easily pulled through most conduit, and no additional power is required, making the CUSB3V1-AP a true plug-and-play solution.

Key Features
  • Data transfer rates of up to 5 Gigabits per second
  • Offers fiber-optic noise immunity
  • Plenum Rated
  • Provides precise regulated 5v output power at the remote end @ up to 900 ma
  • Supports all USB 3.0 devices on all platforms
  • Thin and flexible with bend radius of 0.3 inch
  • No additional power supply required

Specifications

InputMale USB 3.0 Type A
OutputFemale USB 3.0 Type A
Available Lengths15m (~50ft), 30m (~100ft) and 50m (~164ft)
USB StandardsUSB 3.0 or USB 3.1 Gen 1
Bandwidth5 Gbps max
Supply VoltagePowered from USB 5v pin
Nominal5v (operating range: 4.7v~5.3v), Damage will occur if 5v input > 6v
Supply CurrentNominal: 50 ma max (not including remote USB device load)
Power ConsumptionNominal: 0.25 watts
