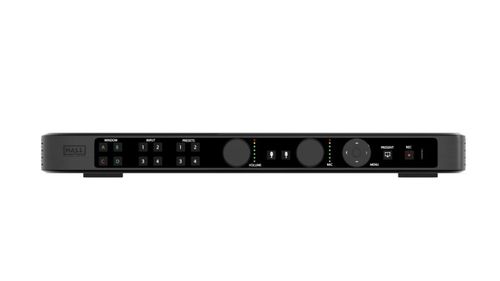

Hall Technologies 18G 4x2 Presentation Switcher w/Seamless Switching, - EMCEE200
![Free Shipping](https://s.turbifycdn.com/aah/focusedtechnology/peerless-9-11-adjustable-extension-column-adj0911-52.jpg)
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
EMCEE200: Multiview Presentation Switcher
EMCEE200 is a multiview presentation switcher with Picture-in-Picture (PIP) and Picture-Over-Picture (POP) capabilities. It can process up to four 4K@60 video sources with zero latency and gives “CONFIDENCE” and “PRESENT” HDMI outputs in different window layouts. With a built-in dual MIC mixer and a wide range of Audio Embedding and De-Embedding options, EMCEE is a perfect companion for any type of presentation. EMCEE can not only record the presentation to an external storage device but also provides USB3.0 4K capture to stream live with no additional hardware.
Key Features- Virtually Seamless Switching
- 4K@60 4:4:4 on all Inputs and Outputs
- Picture-In-Picture (PIP) and Picture-Over-Picture (POP) with Multiview
- Recording and 4K Soft Codec Support
- Dual MIC Mixer
- Audio Embedding and De-Embedding
- Confidence and Present Output with Splash Screen Support
- Built-in WEB Page with IR, RS-232, TCP/IP, and Telnet Control
Specifications
Input | 4x HDMI 2.0 a |
Output | 2x HDCP 1.4/2.2 | 18 Gbps Bandwidth | Up to 4K2K@60 (4:4:4) |
USB 3.0 Capture | USB 3.0 SuperSpeed Type-B Female | 350MBps | Compatible with Windows 7/8.1/10, Mac, and Linux OS | Capture up to 4K2K@60 4:4:4 8Bits |
USB Recording | USB 2.0 Type-B Female | 1080p@60 Recording |
HDMI | PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD 16/20/24 bits per sample up to 96kHz Sampling Rate |
MIC Input | 1x 3.5mm Audio Jack | 1x 3pin Phoenix Connector | 48V Phantom and Line level audio support |
Embedding | 1x Digital TOSLINK | 1x STEREO L/R 3.5mm Audio Jack |
De-embedding | 1x Digital TOSLINK | 1x STEREO L/R 3.5mm Audio Jack | 1x BAL-STEREO 6pin Phoenix Connector |
RS232 | 115200 bps | 3pin Phoenix Connector |
IP | Embedded WEB-GUI, PC-GUI (Window Only) | TCP/IP, Telnet Commands |
IR Remote | 36KHz |
Power Supply | 12V 3A DC (US/EU Standards/CE/FCC/UL Certified) |
Consumption | 32 Watt Max |
