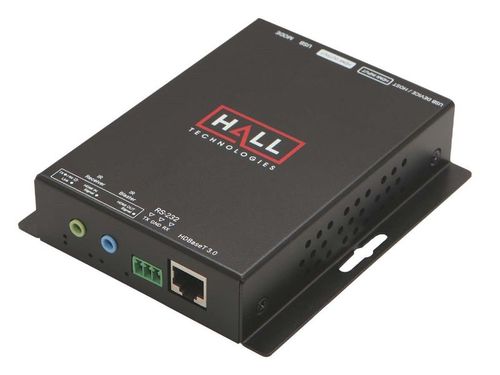

Hall Technologies HDBaseT expansion card for use with the EMCEE200, - EXP HDBT3-TRX100
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
EXP-HDBT3-TRX100 HDBaseT Expansion Card for EMCEE200 Presentation Switcher by Hall Technologies
The TRX100 is an HDBaseT expansion card for use with the EMCEE200 presentation switcher. This expansion card adds an additional mirrored output to the EMCEE200. The TX100 extends HDMI 2.0, Bi-Directional IR, USB 2.0, RS-232 and transmits PoE over a single CAT6A cable via HDBaseT 3.0 up to 90 meters (295 ft).
Key Features- For use with EMCEE200 presentation switcher
- Extends HDMI 2.0, Bidirectional IR, RS-232 and transmits/receives PoE over single CAT-6A cable via HDBaseT 3.0 up to 90 meters (295 feet)
- A second HDMI input allows for additional connection of a local source device
Specifications
Video | DVI (single link) | HDMI 1.4 and HDMI 2.0b including 12 bit color depth, 3D video and HDCP 1.4/2.2 |
Resolutions | DVI signal - VGA (640x480) thru WUXGA (1920x1200) | HDTV signal 480p through 4K 60 Hz 4:4:4 |
Connectors | (1) Terminal block 3P RS232 | (1) 3.5 mm IR IN | (1) 3.5 mm IR OUT | (1) USB 2.0 Tab B | (1) RJ45 HDBT |
Audio Formats | LPCM 2CH Audio (32, 44.1 and 48 KHz sample rate) | Digital Audio multi-channel 2.0, 5.1, 7.1 |
RS-232 Signals | (1) RX, TX and GND on Terminal Strip | RS-232 Baud Rate: 115200, N, 8, 1 |
USB | (1) USB-B Host port - USB 2.0/1.1 compatible |
IR | (1) 3.5mm IR Receiver: Tip= IR signal, Ring = GND , Sleeve= V+ | (1) 3.5mm IR Emitter: Tip= IR signal, Sleeve= GND |
POH Voltage | 48VDC PSE |
POH Standard | 802.3af POH |
POH Class | class 3 13.5W |
Temp / Humidity | Storage: -4F to 140F (-20C to 60C) / 10% to 90% non-condensing | Operating: +32 to +122F (0 to +50C) / 10% to 90%, non-condensing |
Enclosure Type | Aluminum Faceplate |
Dimensions | 3.6" W x 4" D x 0.93" H (91mm W x 102mm D x 24mm H) |
